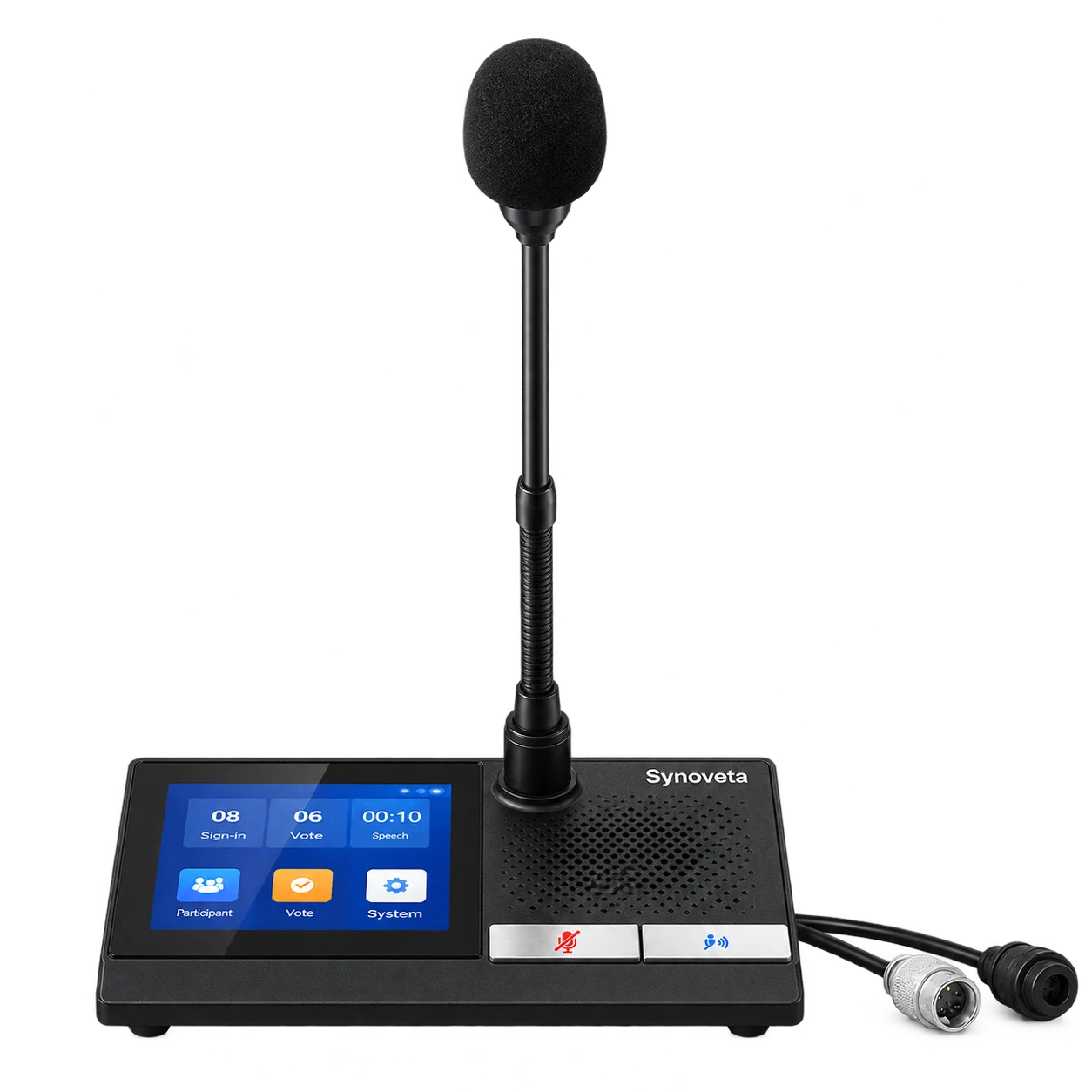

Synoveta SV-2001CL Wired Full-Digital Conference Chairman Unit

Synoveta · Digital Wired Conference

Synoveta Professional Conference

Chairman Unit

SV-2001CL

Wired Full-Digital Conference Chairman Unit

SV-2001CL is a wired full-digital conference chairman unit with a 4-inch full-color capacitive touch screen for meeting interaction and status display. It supports sign-in, voting, real-time participant information, full-digital audio transmission, video tracking and centralized control through the conference host.

Key Features

  • 4-inch full-color capacitive touchscreen.
  • High-resolution graphical interface.
  • Meeting sign-in.
  • Voting.
  • Real-time result display.
  • Displays current speaker name.
  • Displays seat number.
  • Displays waiting-to-speak list.
  • Supercardioid condenser microphone.
  • Full-digital signal transmission.
  • Speaking-status indicator integrated into microphone stem.
  • Dual RJ45 interfaces.
  • Daisy-chain / hand-in-hand connection.
  • Video tracking.
  • Individual microphone gain, EQ and AGC adjustment.
  • Centralized 24 V power supply.
  • CAT6 network-cable connectivity.
Request product information View specifications

Product data

Technical specifications

SpecificationValue
Display TypeFull-Color Capacitive Touch Screen
Display Size / Resolution4 inch / 480 × 480 RGB
Power Supply24 V DC, Centralized from Conference Host
Power Consumption≤ 3.5 W
Audio EncodingMP3 / PCM / ADPCM
Audio Sampling / Bit Depth8 kHz – 48 kHz / 16-bit
Audio Bit Rate8 kbps – 320 kbps
SNR / Frequency Response≥ 83 dB / 40 Hz – 18 kHz
MicrophoneCondenser Microphone; Supercardioid
Headphone OutputØ3.5 mm Stereo Jack
StorageBuilt-in SPI Flash
ConnectionCAT6 Network Cable; 2 × RJ45
TopologyDaisy-Chain / Hand-in-Hand Connection
Video TrackingSupported
Audio AdjustmentIndividual Microphone Gain, EQ & AGC via Conference Host
Operating Environment0°C – 45°C; ≤ 90% RH, Non-Condensing

Continue exploring

Related conference products

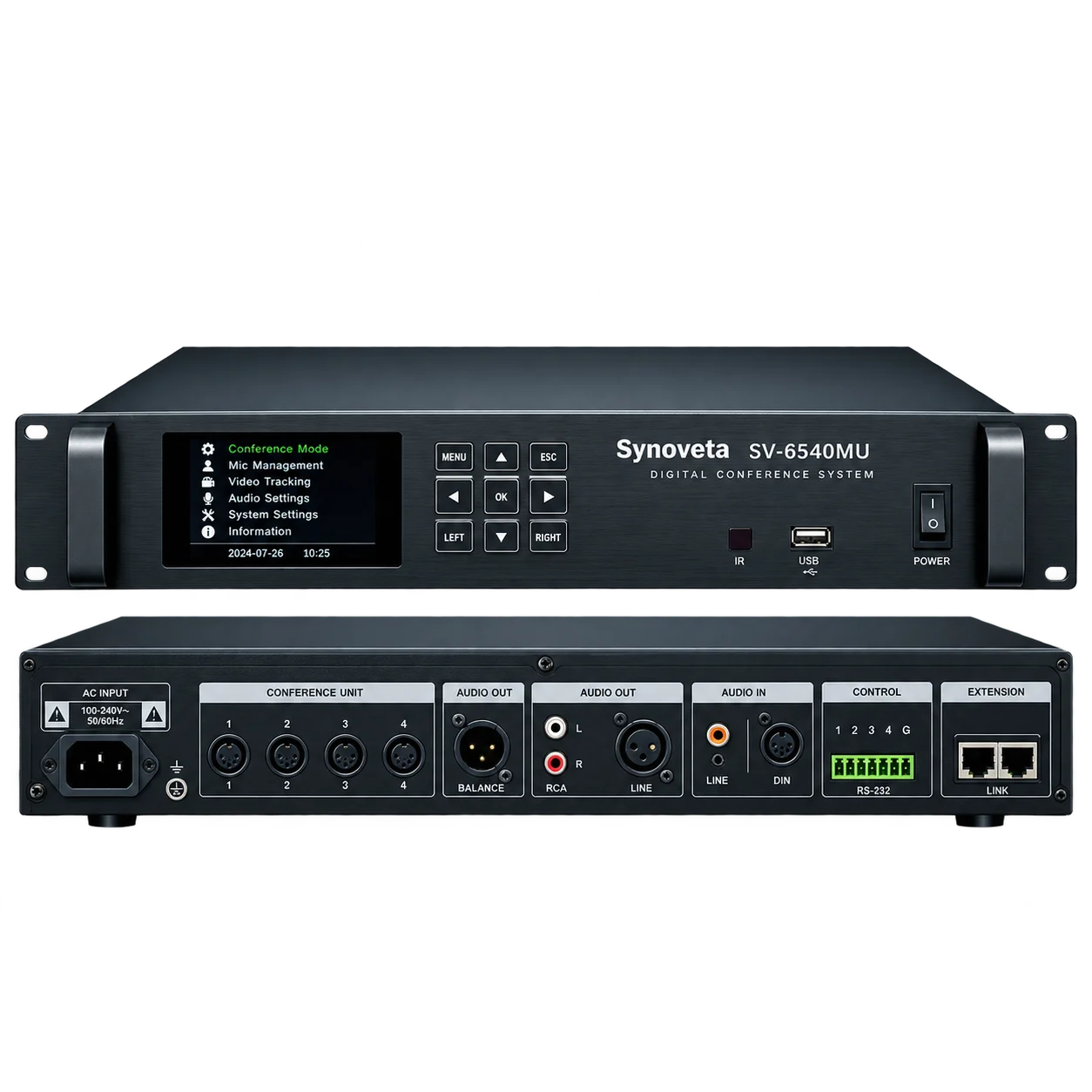

System ControllerSynoveta SV-6540MU Digital Wired Conference System Controller
