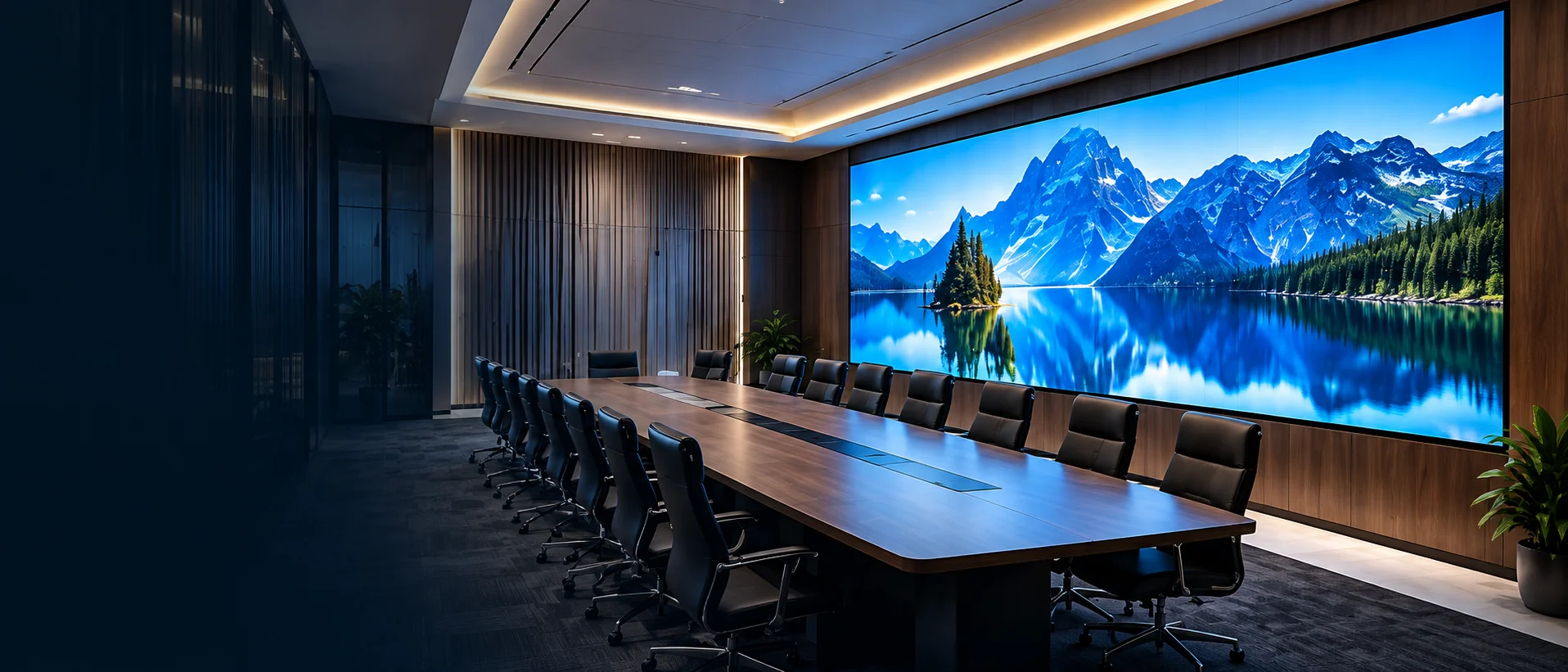

CX LED display installed in a premium conference room

Synoveta Professional Display Systems

CX Series

Professional Indoor LED Display

A refined modular display platform created for clear information, immersive presentations and dependable everyday visual communication.

INDOOR LEDP1.25 | P1.53 | P1.86MODULAR PANEL SYSTEMPROJECT-CONFIGURED

Request product information

Built for information-rich environments

Clear visuals. Confident decisions.

The CX Series brings large-format visual communication into professional indoor spaces. Its modular panel architecture supports display walls planned around the room, the content and the people who need to see every detail.

Professional LED panel system

Designed Around Your Space

From an executive meeting room to an always-on operations centre, CX can be configured around the required canvas size, viewing distance and content workflow.

Modular, scalable display architecture
Clear presentation of video, text and data
Project-led system design and integration

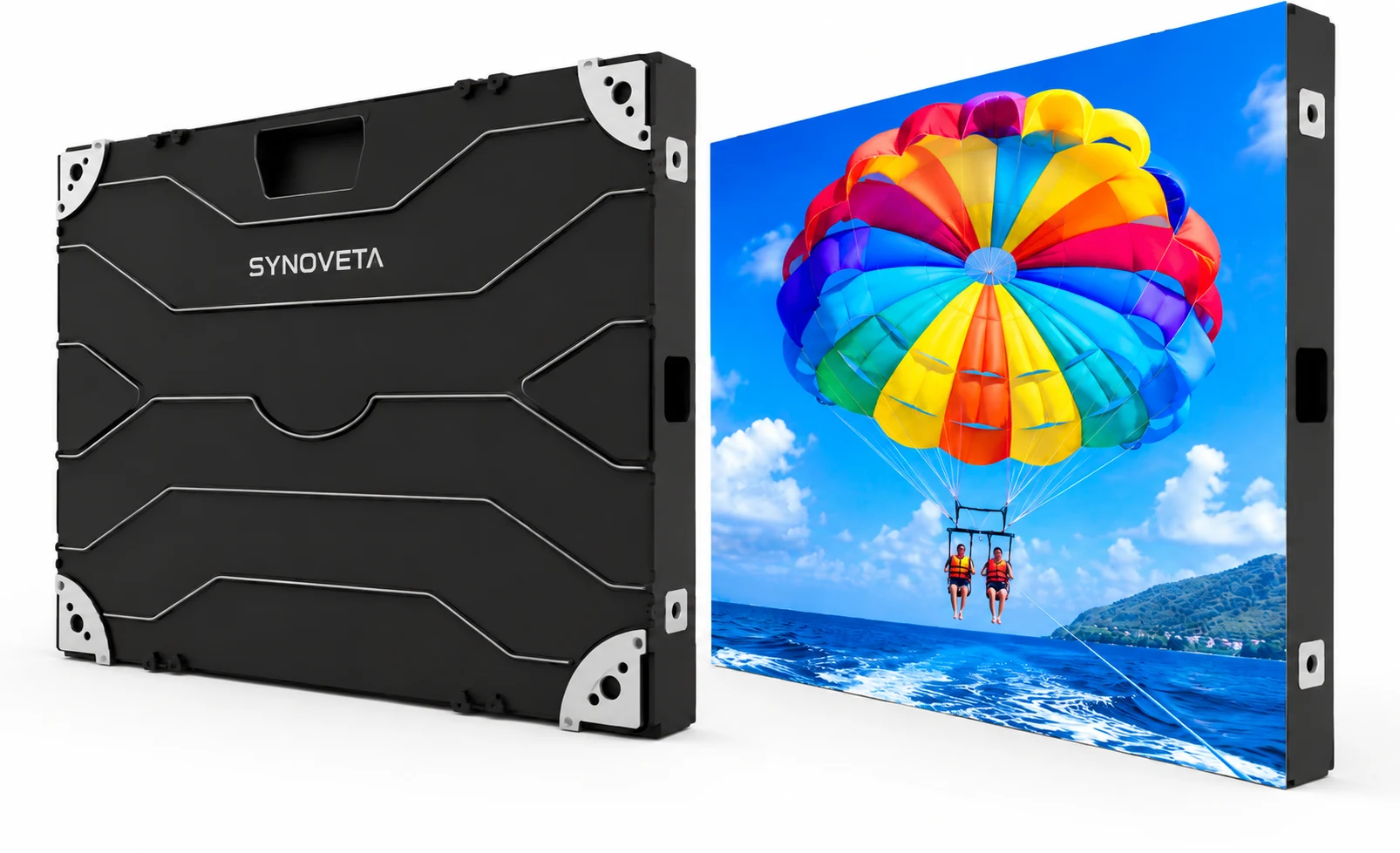

CX Series LED display panel shown from the front and rear

Visual precision

Present dashboards, live feeds, presentations and detailed content on one focused visual canvas.

Modular scale

Plan the display dimensions around the room, the viewing audience and the required content format.

Professional integration

Coordinate display, processing, control, mounting and signal flow as one complete project solution.

From requirement to configuration

Plan the Right CX Display

Every professional display project starts with the space and its content. These inputs help define the appropriate CX configuration.

Planning area	CX approach	What to define
Installation environment	Indoor professional spaces	Ambient light, room layout and operating hours
Viewing requirement	Close and medium viewing	Smallest text, data density and nearest viewer
Display format	Modular LED panel system	Required screen dimensions and aspect ratio
Content workflow	Presentation, monitoring and live content	Sources, processor and control integration
Project configuration	Designed to suit each installation	Mounting, access, power and signal routing

Final panel, pixel pitch, brightness, cabinet, mounting and electrical specifications are selected according to the approved project requirements.

Full Technical Specifications

Model Technical Data

Synoveta CX Series fine-pitch COB LED display cabinet

Available models

CX-0125 / CX-0153 / CX-0186

Indoor COB LED Display

P1.25
256 × 128 pixels: P1.538
208 × 104 pixels: P1.86
172 × 86 pixels

Module Parameters

ParameterCX-0125CX-0153CX-0186

LED Configuration: Full Flip-chip COB; Full Flip-chip COB; Full Flip-chip COB

Pixel Pitch: 1.25 mm; 1.538 mm; 1.86 mm

Module Resolution (W × H): 256 × 128 pixels; 208 × 104 pixels; 172 × 86 pixels

Module Dimensions (W × H): 320 × 160 × 13.8 mm; 320 × 160 × 13.8 mm; 320 × 160 × 13.8 mm

Module Weight: 0.5 ± 0.05 kg; 0.5 ± 0.05 kg; 0.5 ± 0.05 kg

Module Area: 0.0512 m²; 0.0512 m²; 0.0512 m²

Pixel Density: 640,000 dots/m²; 422,500 dots/m²; 288,906 dots/m²

Cabinet Parameters

ParameterCX-0125CX-0153CX-0186

Cabinet Dimensions (W × H × D): 640 × 480 × 48 mm; 640 × 480 × 48 mm; 640 × 480 × 48 mm

Module Composition (W × H): 2 × 3; 2 × 3; 2 × 3

Cabinet Resolution (W × H): 512 × 384 pixels; 416 × 312 pixels; 344 × 258 pixels

Cabinet Area: 0.3072 m²; 0.3072 m²; 0.3072 m²

Cabinet Weight: 3.6 ± 0.1 kg; 3.6 ± 0.1 kg; 3.6 ± 0.1 kg

Cabinet Material / Maintenance: Die Cast Aluminum; Die Cast Aluminum; Die Cast Aluminum

Optical Performance

ParameterCX-0125CX-0153CX-0186

White Balance Brightness: ≥ 650 nits; ≥ 650 nits; ≥ 650 nits

Color Temperature: 10,000K–12,000K, adjustable; 10,000K–12,000K, adjustable; 10,000K–12,000K, adjustable

Viewing Angle (H / V): 160° / 160°; 160° / 160°; 160° / 160°

Brightness Uniformity: ≥ 95%; ≥ 95%; ≥ 95%

Contrast Ratio: ≥ 12000:1; ≥ 12000:1; ≥ 12000:1

Electrical & Control

ParameterCX-0125CX-0153CX-0186

Single Module Power Consumption: ≤ 19 W; ≤ 16 W; ≤ 16 W

Power Supply Voltage: DC 4.5-5 V; DC 4.5-5 V; DC 4.5-5 V

Single Module Current: 4.0 A; 3.6 A; 3.6 A

Drive Mode: 43S constant-current; 43S constant-current; 43S constant-current

Frame Rate: 60 Hz; 60 Hz; 60 Hz

Refresh Rate: ≥ 7680 Hz; ≥ 7680 Hz; ≥ 7680 Hz

Pixel Structure: Full Flip-chip COB; Full Flip-chip COB; Full Flip-chip COB

Environment & Reliability

ParameterCX-0125CX-0153CX-0186

Lifetime: 100,000 hours; 100,000 hours; 100,000 hours

Operating Temperature: −20 to +50 °C; −20 to +50 °C; −20 to +50 °C

Storage Temperature: −20 to +60 °C; −20 to +60 °C; −20 to +60 °C

Operating Humidity: 10–80% RH, non-condensing; 10–80% RH, non-condensing; 10–80% RH, non-condensing

Storage Humidity: 10–85% RH, non-condensing; 10–85% RH, non-condensing; 10–85% RH, non-condensing

Made for professional communication

Where CX Performs

Purposeful large-format visuals for teams that present, monitor, collaborate and teach.

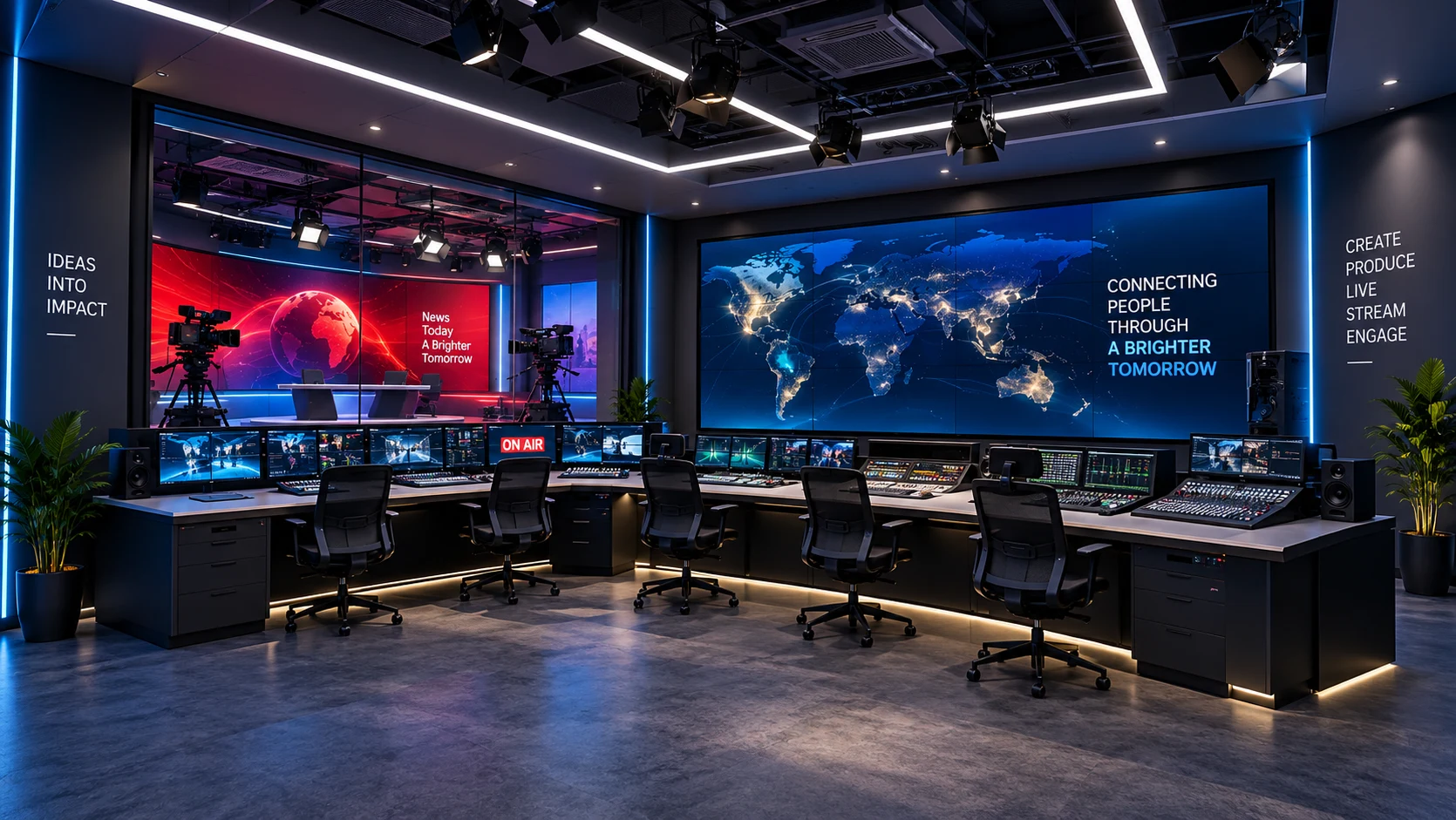

Broadcast & Studio

Large, vivid visual canvases for production monitoring, live content and studio presentation environments.

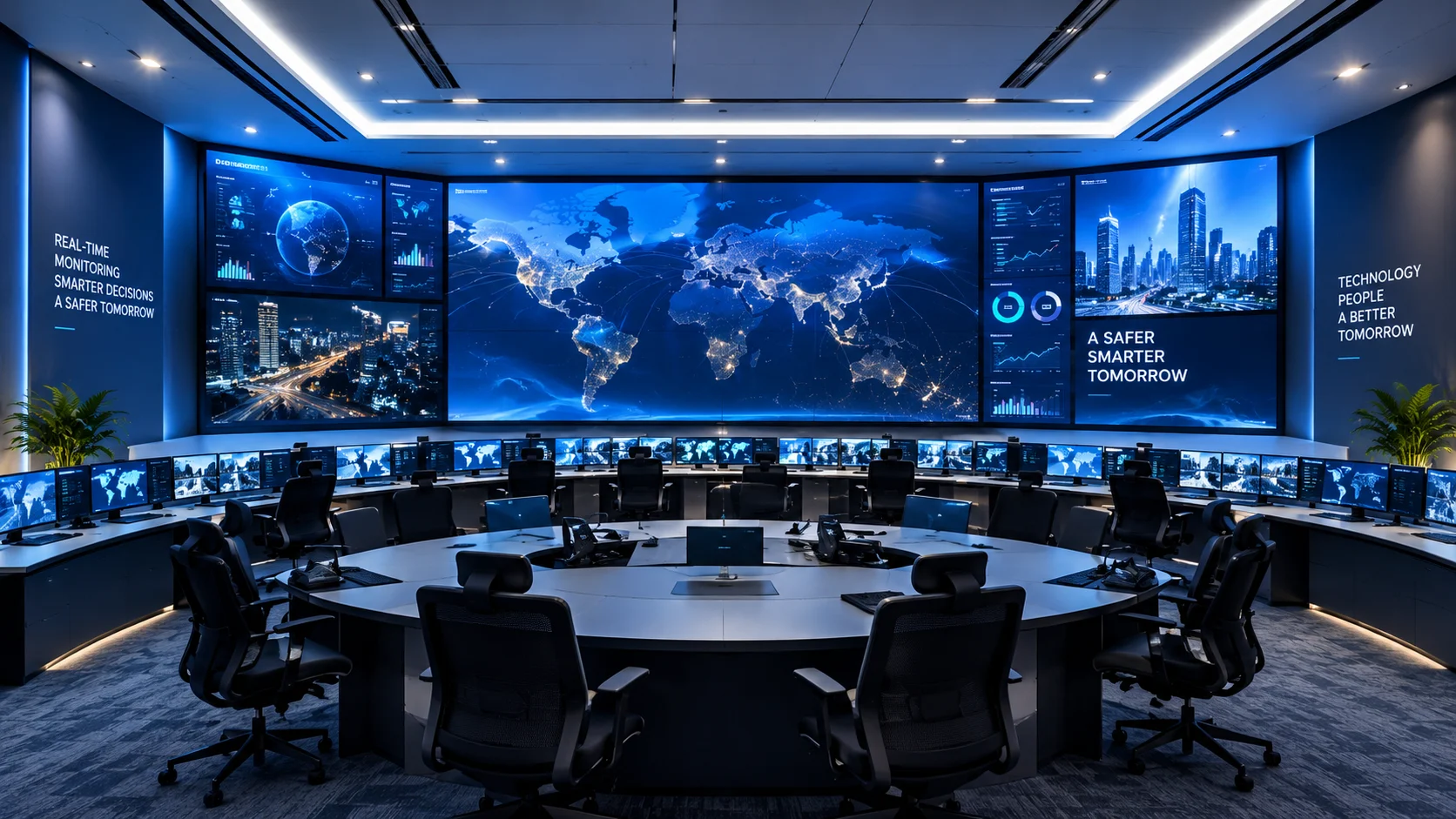

CX LED display wall in a command and control centre

Command & Control

A clear, unified view of operational data for monitoring, coordination and fast decision-making.

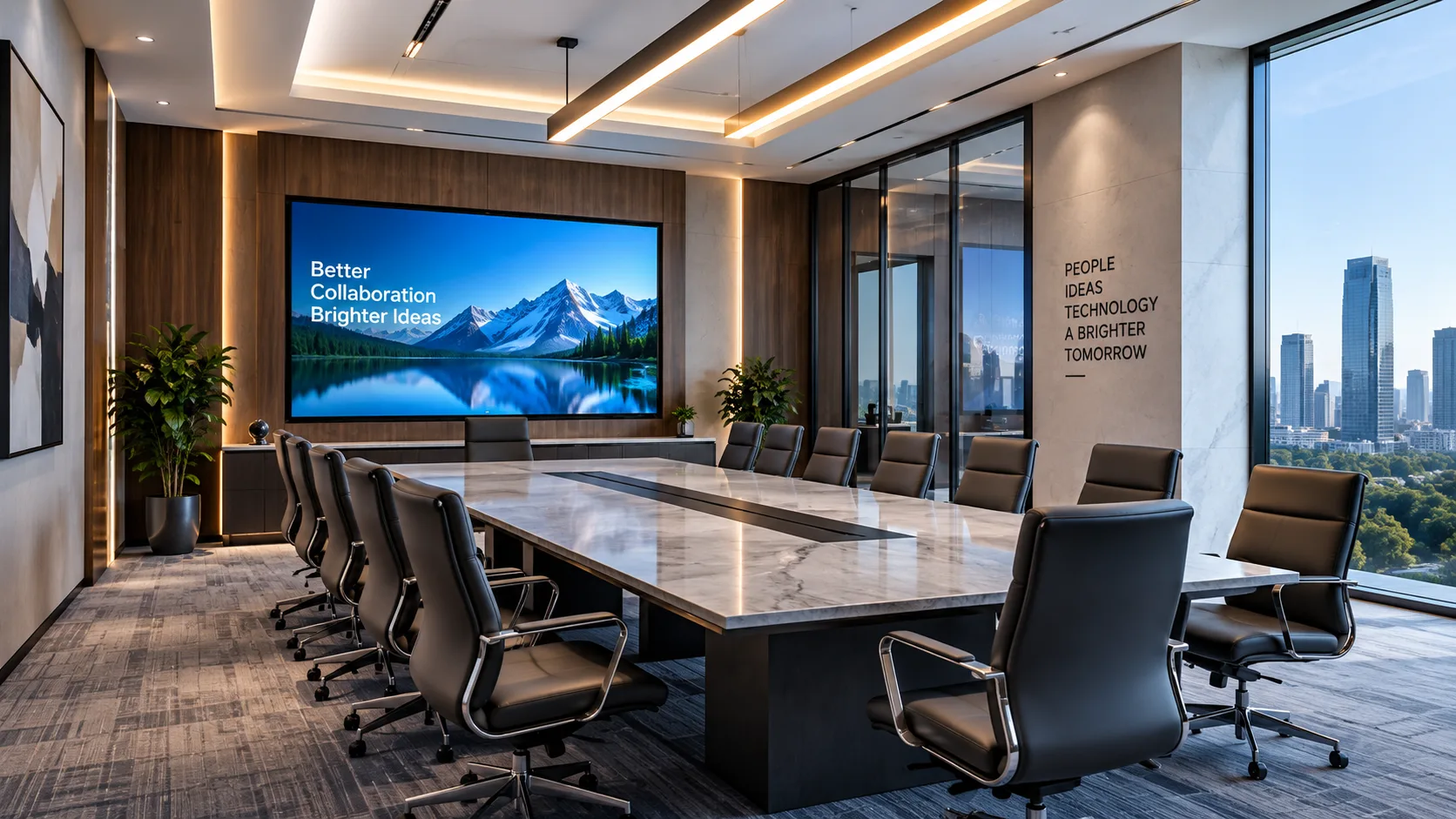

Corporate & Conference

Confident presentations and collaborative content for boardrooms, meeting rooms and executive spaces.

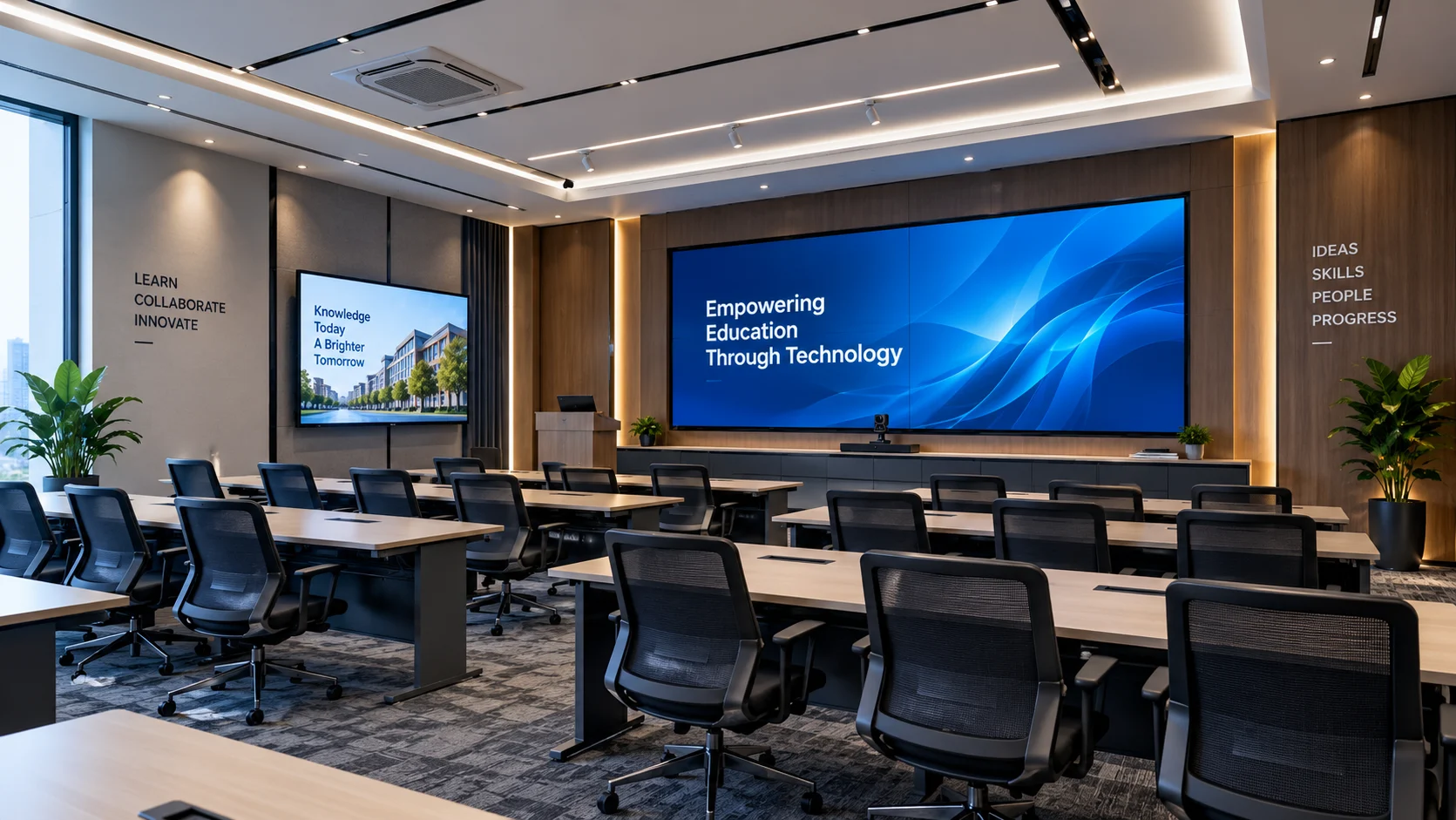

CX LED display installed in an education and training room

Education & Training

High-impact learning content for training centres, lecture spaces and technology-enabled classrooms.

Talk to our display team

Send Inquiry Now

Tell us about your display size, viewing distance and installation requirements.
