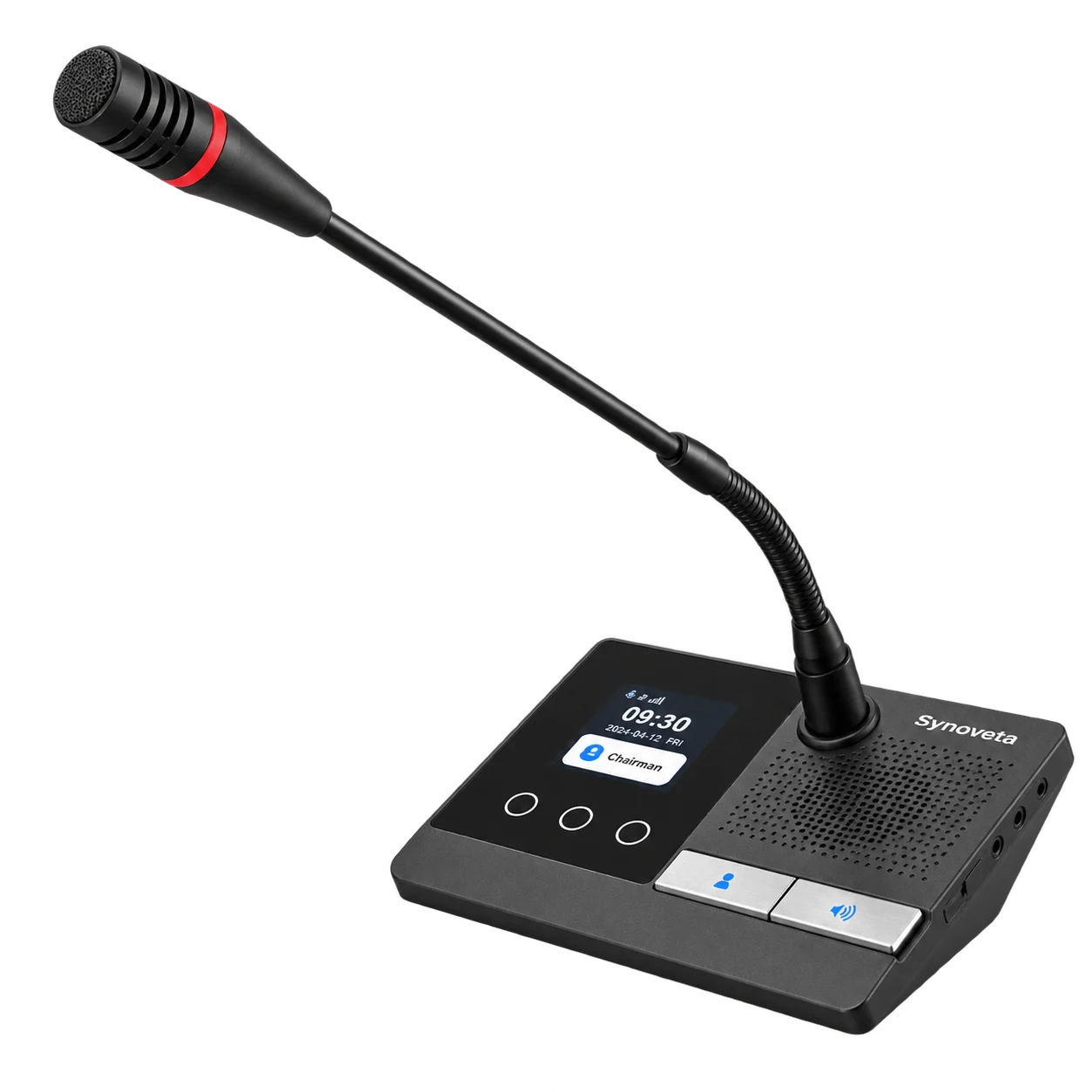

Synoveta SV-3002CL Wired Full-Digital Conference Chairman Unit

Synoveta · Digital Wired Conference

Synoveta Professional Conference

Chairman Unit

SV-3002CL

Wired Full-Digital Conference Chairman Unit

SV-3002CL is a wired full-digital conference chairman unit with a 1.77-inch full-color TFT display and capacitive touch controls. It provides meeting sign-in, voting, chairman priority control, full-digital audio transmission, PTZ video tracking and centralized power/network connectivity for professional conference applications.

Key Features

  • 1.77-inch full-color TFT display.
  • Three multi-functional capacitive touch keys.
  • Meeting sign-in.
  • Voting.
  • Real-time result display.
  • Chairman Priority Control.
  • Chairman can approve or prohibit delegate units from speaking.
  • Supercardioid condenser microphone.
  • Full-digital signal transmission.
  • Speaking-status indicator light.
  • PTZ video tracking.
  • Individual microphone gain, EQ and AGC adjustment.
  • Centralized power supply.
  • CAT6A network connectivity.
Request product information View specifications

Product data

Technical specifications

SpecificationValue
Display TypeFull-Color TFT Display
Display Size / Resolution1.77 inch / 160 × 128 pixels
Power Supply24 V DC, Centralized from Conference Host
Power Consumption≤ 2 W
Audio EncodingMP3 / PCM / ADPCM
Audio Sampling / Bit Depth8 kHz – 48 kHz / 16-bit
Audio Bit Rate8 kbps – 320 kbps
SNR / Frequency Response≥ 83 dB / 40 Hz – 18 kHz
Server File Broadcast SNR≥ 90 dB; 40 Hz – 18 kHz
MicrophoneGold-Plated Condenser; 14 mm head; Supercardioid
Headphone OutputØ3.5 mm Stereo Jack
ConnectionCAT6A Network Cable; 2 × RJ45
TopologyDaisy-Chain / Hand-in-Hand Connection
Video TrackingSupported
Audio AdjustmentIndividual Microphone Gain, EQ & AGC via Conference Host
Operating Environment0°C – 45°C; ≤ 90% RH, Non-Condensing
Dimensions220 × 98.8 × 107.6 mm
MaterialsPickup Cavity: Aluminum; Base: ABS
