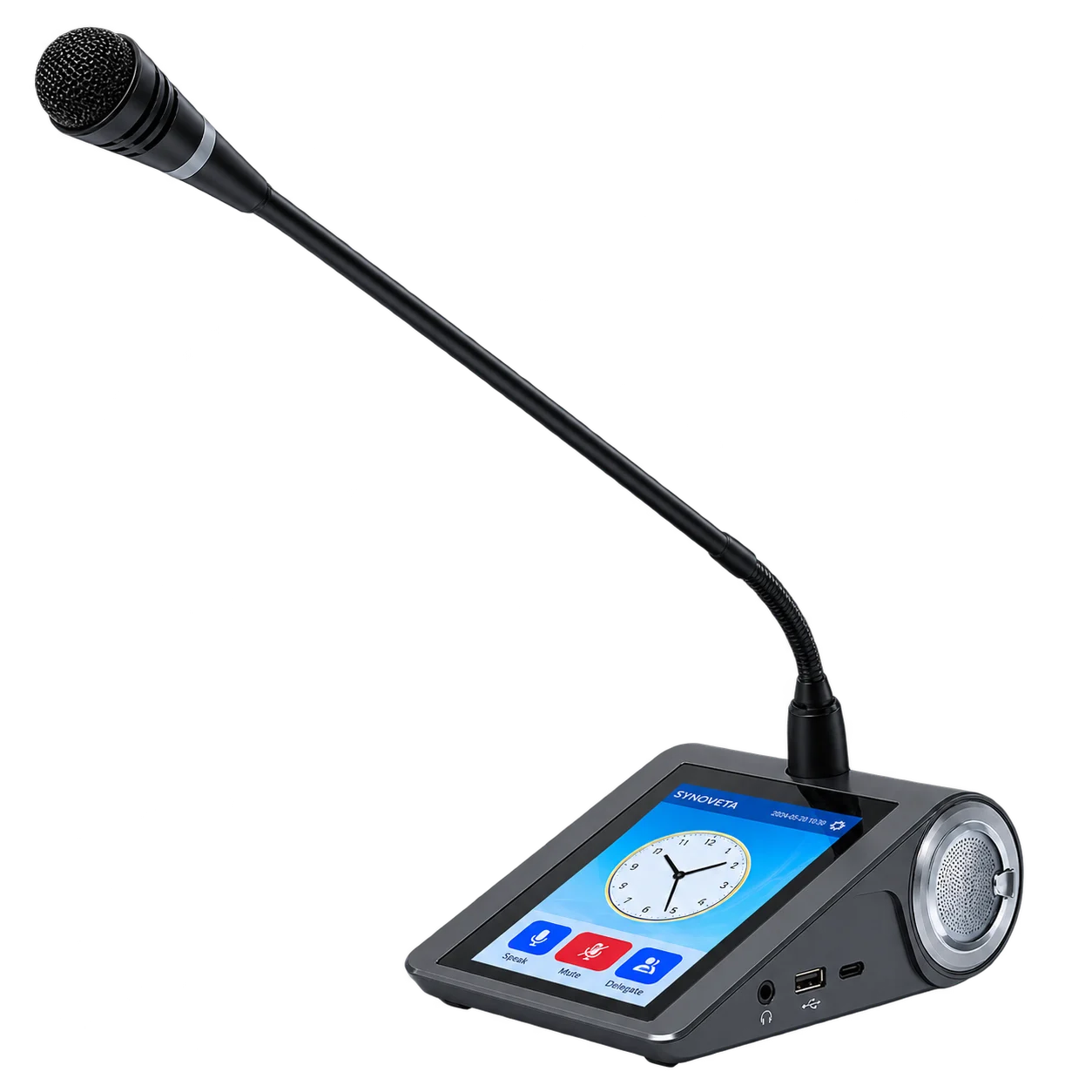

SV-DWC-M805C

Full Digital Wired Chairman Unit

Full digital wired chairman unit with a 5-inch IPS touch screen and advanced conference functions.

Key Features

Standard CAT6e connection with RJ45 connector; 48 kHz sampling rate and 80 Hz–16 kHz bandwidth.
Original 5.0-inch IPS touch-screen interface with a low-key black design.
Supports PC software microphone control and voice-control functions.
Chairman priority function can close the speech of delegate units.
TCP/IP protocol support including ICMP, HTTP, UDP, TCP and IGMP; supports PING packet function.
Optional built-in 5 W fidelity speaker with howling suppression; the speaker automatically mutes when the microphone is on.
Supports speech timing, timed speech and countdown speech functions.
Adjustable voice-control sensitivity and 5-band EQ adjustment.
Supports 63+1-channel simultaneous interpretation plus sign-in, voting and election functions.

Product data

SpecificationValue

Microphone typeElectret condenser microphone

Microphone core directivityCardioid

Frequency response80 Hz–16 kHz

Microphone input impedance1 kΩ

Sensitivity−46 ± 2 dB (0 dB = 1 V/Pa at 1 kHz)

Maximum SPL120 dB (THD >3%)

Signal-to-noise ratio>80 dB(A)

Crosstalk>70 dB

Dynamic range>80 dB

THD<0.3%

Maximum power consumption3 W

Network port2, multi-level network port

Power supplyConference host

ColorSilver gray

Dimensions (L × W × H)166 × 109 × 128 mm

Microphone rod length and colorSquare microphone rod 215 mm black; long microphone rod 415 mm

Installation methodDesktop

Weight0.75 kg
