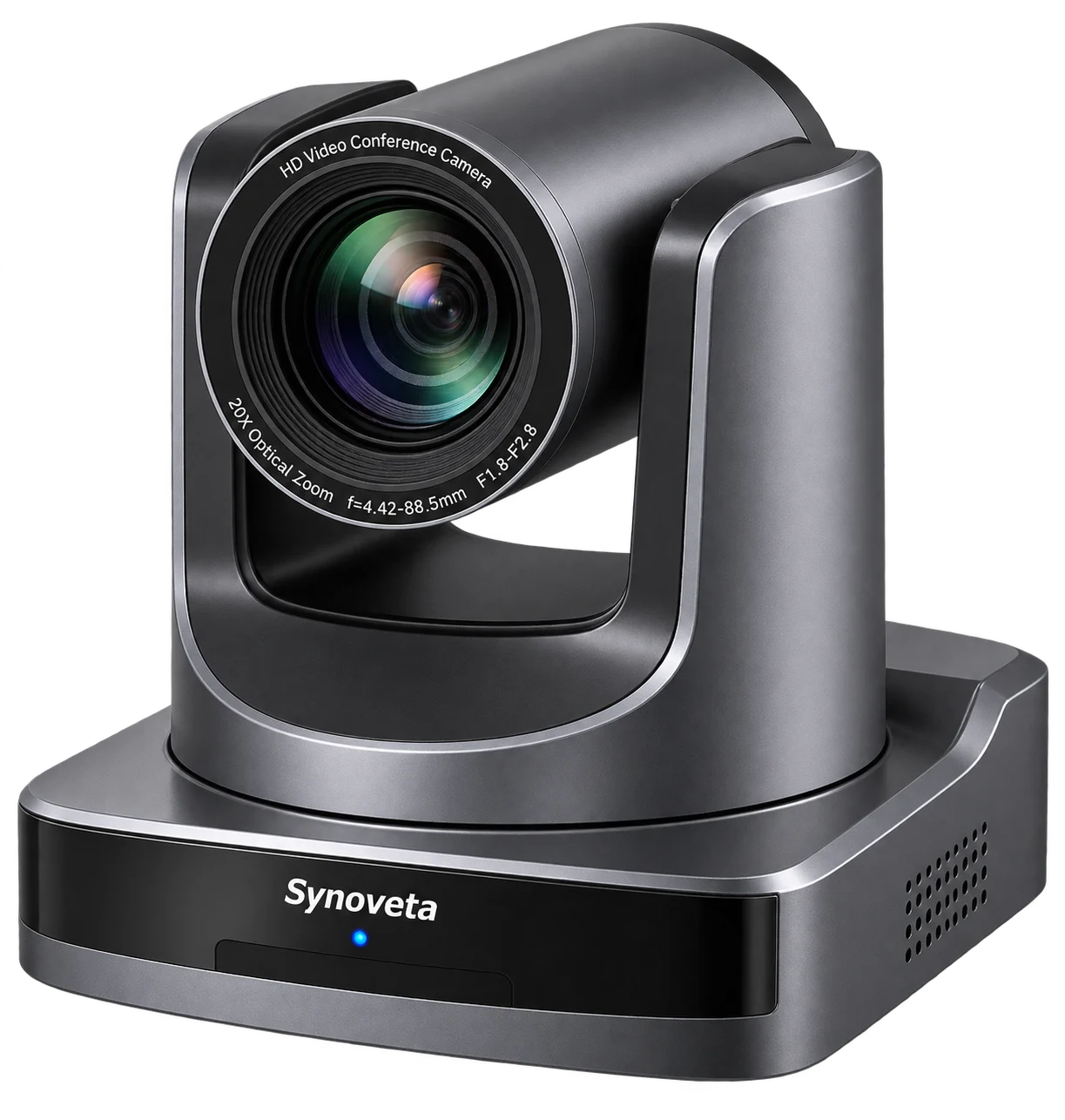

Synoveta SV-101SXJ HD PTZ Video Conference Camera

Synoveta · Wi-Fi Wireless Conference

Synoveta Professional Conference

PTZ Conference Camera

SV-101SXJ

HD PTZ Video Conference Camera

Professional Full HD PTZ conference camera featuring a 1/2.8-inch 2.07 MP CMOS sensor, 20x optical zoom, 1080p60 output, motorized pan/tilt, low-latency multi-interface video, network streaming, USB connectivity, integrated audio support and remote PTZ control. Designed for video conferencing, education recording, remote learning, live streaming and broadcasting.

Key Features

Full HD 1920 × 1080 imaging.
1/2.8-inch 2.07 MP CMOS sensor.
20x optical zoom.
Lens: f=4.42–88.5 mm, F1.8–F2.8.
Horizontal FOV: 60.7°–3.36°.
Motorized PTZ.
Pan ±170°.
Tilt −30° to +90°.
Up to 255 presets.
0.1° preset accuracy.
Simultaneous 1080p60 via 3G-SDI, HDMI, USB and network.
2D & 3D digital noise reduction.
Minimum illumination: 0.5 Lux.
USB 3.0.
UVC 1.1 / UVC 1.5.
UAC 2.0 audio.
H.265 / H.264 network streaming.
Dual-stream network video.
RS-232 / RS-485 remote control.
VISCA / Pelco-D / Pelco-P.
Gigabit Ethernet.
PoE support.
Built-in dual microphone array.
3.5 mm Line-In / Line-Out.
FULL NDI / NDI|HX2 optional support.
TCP/IP / HTTP / RTSP / RTMP / ONVIF / DHCP / Multicast / SRT.

Request product information View specifications

Product data

Technical specifications

SpecificationValue

Image Sensor1/2.8-inch CMOS, 2.07 MP effective pixels

Video OutputHDMI / 3G-SDI up to 1080P60; USB and network output

Lens20x optical zoom, f=4.42–88.5 mm, F1.8–F2.8

Minimum Illumination0.5 Lux @ F1.8, AGC ON

Shutter1/30 s – 1/10000 s

Backlight CompensationSupported

Noise Reduction2D & 3D DNR

S/N Ratio≥ 55 dB

Horizontal Field of View60.7°–3.36°

Vertical Field of View34.1°–1.89°

Pan Range / Speed±170°, 1.7°–100°/s

Tilt Range / Speed−30° to +90°, 1.7°–69.9°/s

Presets255

Preset Accuracy0.1°

USBUSB 3.0 Type-A

USB VideoUVC 1.1 / 1.5

USB FormatsYUY2 / H.264 / MJPEG

USB AudioUAC 2.0

Network VideoH.265 / H.264

Network StreamsDual stream

Network Frame Rate1–60 fps

Network Bitrate32–102400 Kbps

ProtocolsFULL NDI / NDI|HX2 / TCP/IP / HTTP / RTSP / RTMP / ONVIF / DHCP / Multicast / SRT / GB/T 28181

EthernetRJ45 10/100/1000M adaptive Ethernet

PoESupported

Audio Input3.5 mm Line-In ×1

Audio Output3.5 mm Line-Out ×1

Built-in AudioDual Microphone Array

Control InterfacesRS232 In/Out / RS485

PTZ ProtocolsVISCA / Pelco-D / Pelco-P

PowerDC 12 V / PoE 802.3af

Maximum Current1.0 A

Maximum Power12 W

Operating Temperature0–40°C

Storage Temperature−40–60°C

Dimensions169 × 142 × 175 mm

Weight1.5 kg
