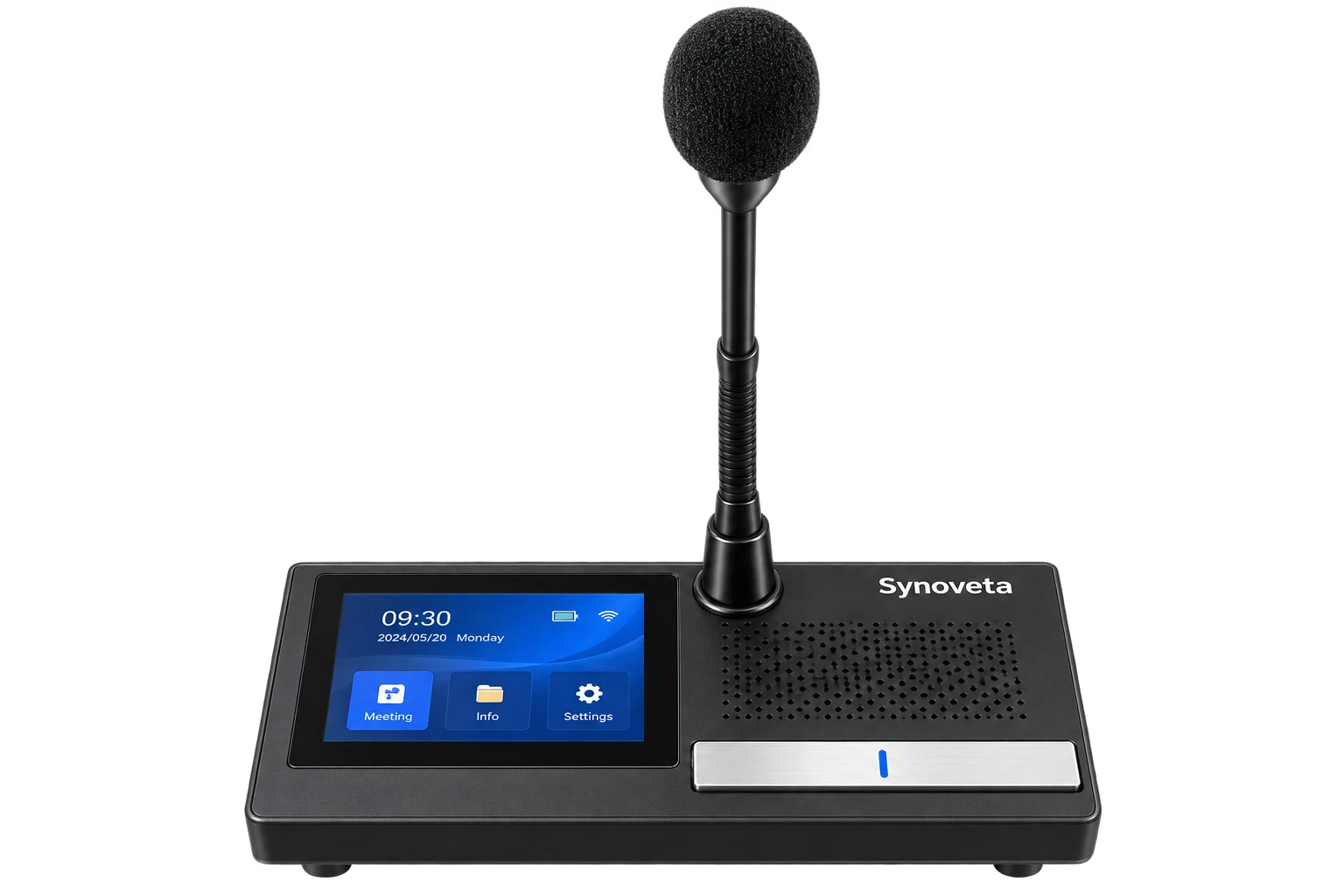

Synoveta SV-3002D2 Wireless Full-Digital Conference Delegate Unit

Synoveta · Wi-Fi Wireless Conference

Synoveta Professional Conference

Delegate Unit

SV-3002D2

Wireless Full-Digital Conference Delegate Unit

A full-digital wireless delegate unit featuring a 4-inch capacitive touch screen, real-time meeting information, tri-band Wi-Fi, long-duration battery operation and video tracking support.

Key Features

  • 4-inch full-color capacitive touch screen.
  • 480 × 480 resolution.
  • Meeting sign-in support.
  • Voting support.
  • Real-time sign-in and voting information.
  • Real-time speaker information.
  • Tri-band 2.4 GHz / 5.2 GHz / 5.8 GHz Wi-Fi.
  • WPA/WPA2 encryption.
  • 4000 mAh polymer lithium battery.
  • Video tracking.
  • Individual microphone gain, EQ and AGC adjustment.
  • Wi-Fi wireless connectivity.
  • Supercardioid microphone pickup.
Request product information View specifications

Product data

Technical specifications

SpecificationValue
Display TypeFull-Color Capacitive Touch Screen
Display Size4 inch
Display Resolution480 × 480 RGB
Power Consumption3 W
Battery TypePolymer Lithium Battery
Battery Capacity4000 mAh
Continuous Speaking TimeApprox. 6 Hours
Screen-On Standby TimeApprox. 8 Hours
SNR≥ 83 dB
Frequency Response40 Hz – 18 kHz
Wireless Frequency Bands2.4 GHz / 5.2 GHz / 5.8 GHz
Wireless EncryptionWPA / WPA2
Connection MethodWi-Fi Wireless Connection
Microphone Polar PatternSupercardioid
Headphone OutputØ3.5 mm Stereo Jack
StorageBuilt-in SPI Flash
Video TrackingSupported
Audio AdjustmentIndividual Microphone Gain, EQ & AGC via Conference Host
Operating Temperature0°C – 45°C
Operating Humidity≤ 90% RH, Non-Condensing

Continue exploring

Related conference products

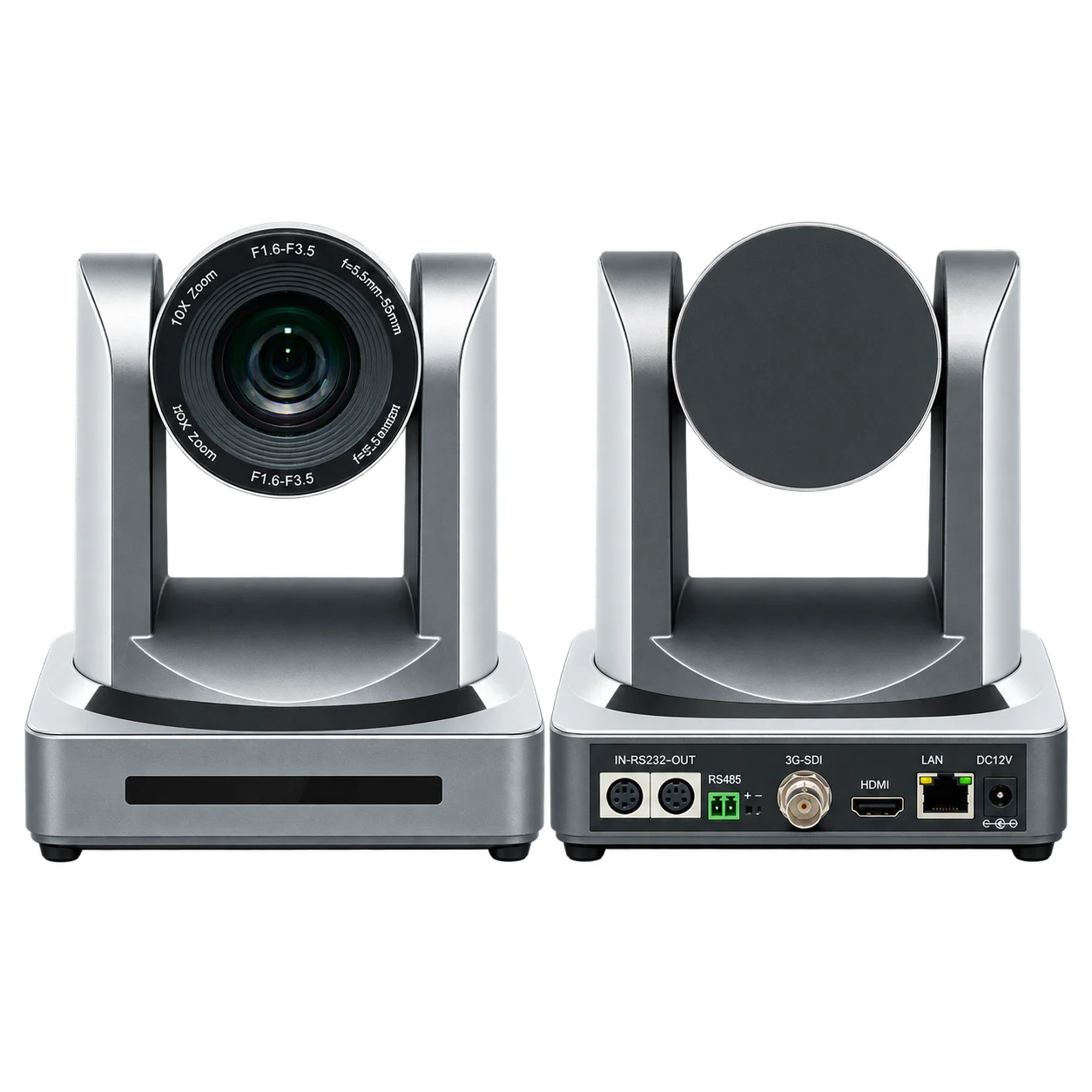

PTZ Conference CameraSynoveta SV-HD08 High-Definition PTZ Conference Camera
SV-HD08

High-Definition PTZ Conference Camera

SV-HD08 is a high-definition camera featuring a 1/2.8-inch CMOS sensor, approximately 2.07 million pixels in 16:9 format, 10x optical zoom and up to 1080p resolution. It supports multiple video outputs, serial control, preset positions and desktop or hoisting installation.

View product details

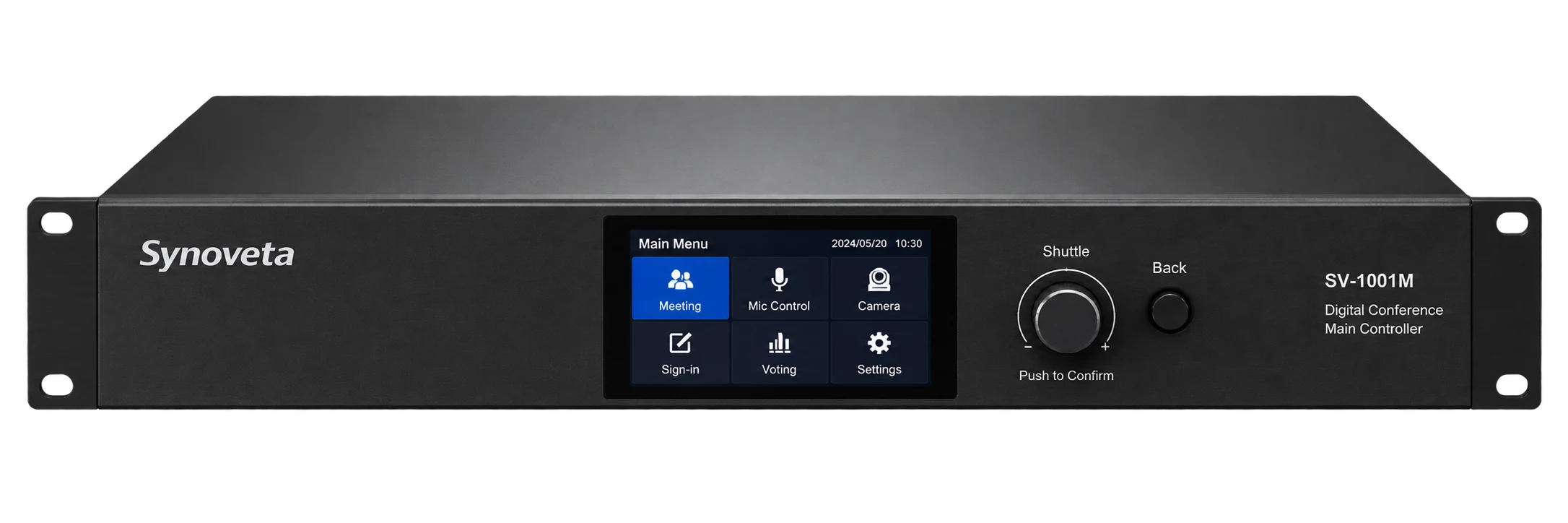

System ControllerSynoveta SV-1001M Digital Conference Main Controller
SV-1001M

Digital Conference Main Controller

SV-1001M is a professional digital conference system main controller designed for centralized meeting management, digital audio processing, wired/wireless microphone control and PTZ camera tracking. It integrates a 4.3-inch full-color LCD, dual ring-network architecture, sign-in and voting, multiple speaking modes, USB recording, web-based management, Bluetooth audio I/O and central-control connectivity.

View product details

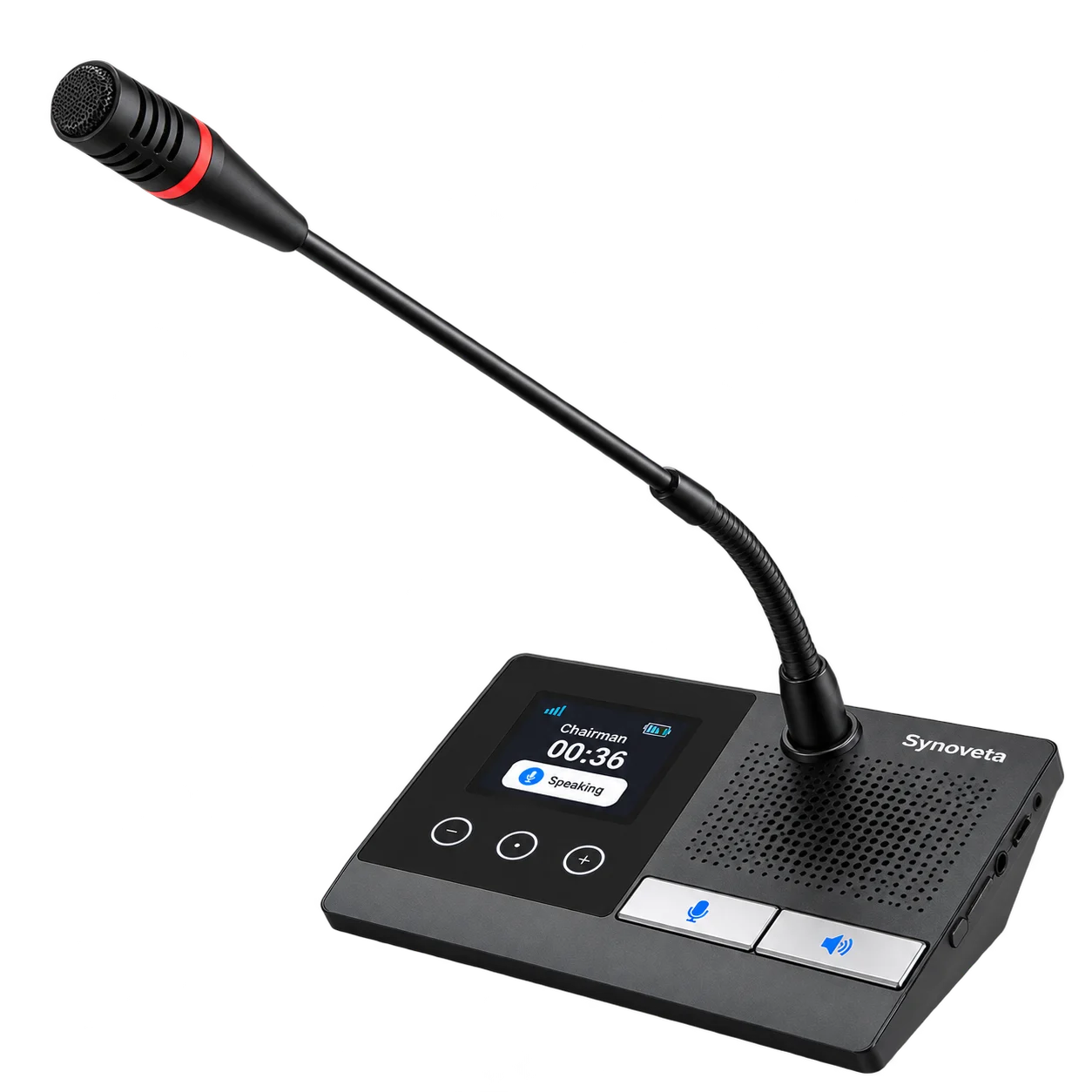

Chairman UnitSynoveta SV-5002C2 Wireless Conference Chairman Unit
SV-5002C2

Wireless Conference Chairman Unit

A compact wireless chairman conference unit with a 1.77-inch color display, chairman priority control, tri-band Wi-Fi, removable battery and integrated meeting functions.

View product details

Project support

Specify the SV-3002D2 for your project

Contact Synoveta for product availability, system design assistance and project support.
