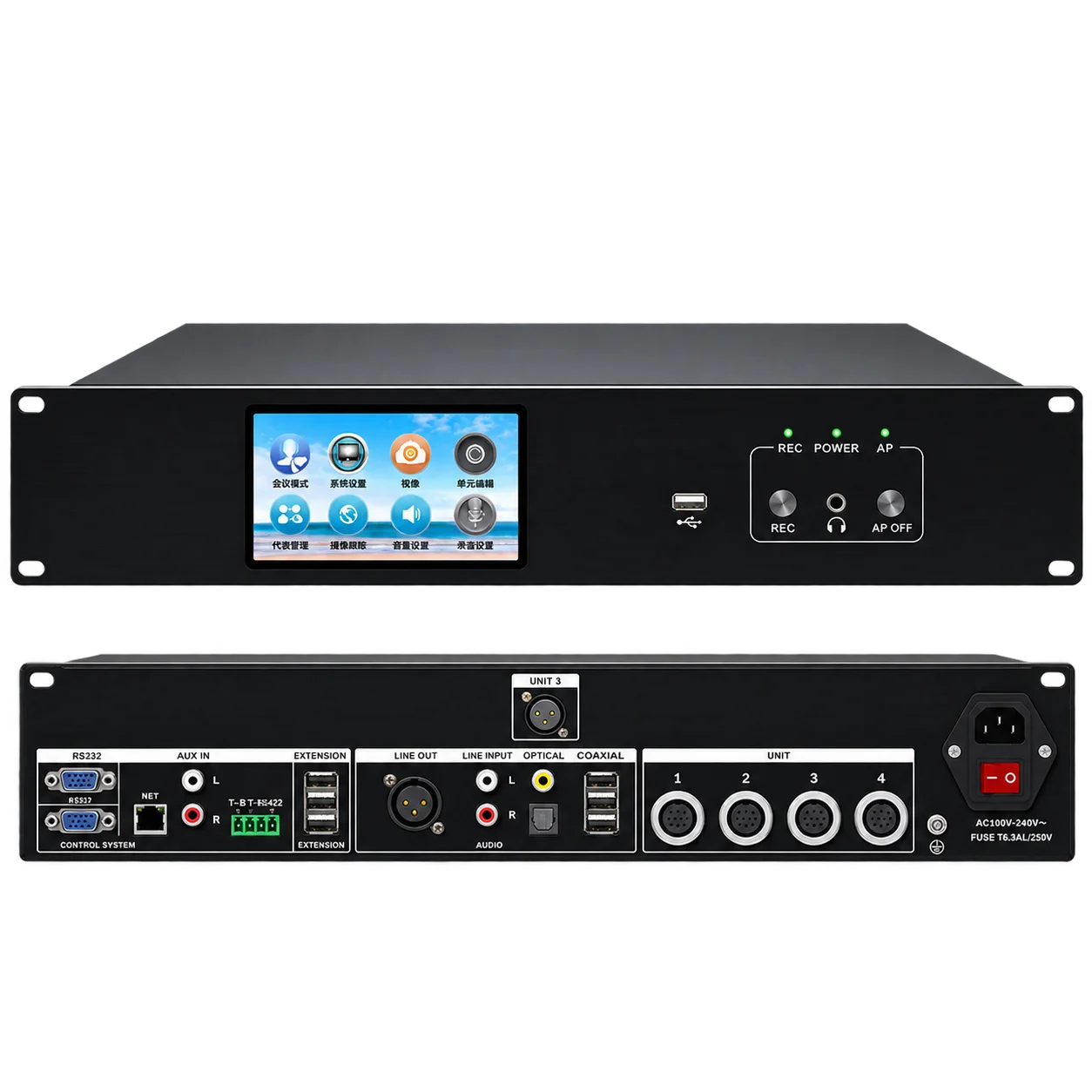

SV-DWC-C800S

Key Features

• Standard 2U chassis design. One CAT6 network cable transmits 64 channels of audio and information, supporting both wired and wireless conferences.
• Adaptive interference-avoidance technology provides strong anti-interference capability. Based on IEEE 802.11n Wi-Fi 6, it supports 2.4 GHz and 5 GHz wireless signals.
• Supports up to 5,300 wired conference units and 300 wireless conference units, with up to 14 microphones speaking simultaneously: 8 wired and 6 wireless.
• Built-in high-performance DSP processor supports 10-band EQ, delay, volume and other host-output adjustments; optional howling suppression is supported.
• Four microphone management modes are supported: FIFO (first in, first out), NORMAL, VOICE (voice control) and APPLY (application mode).
• Audio interfaces include one RCA and one XLR input plus one RCA and one XLR output. Output channels support EQ, delay and volume adjustment, with optical-fiber and coaxial audio outputs.
• Supports USB flash-drive recording with advanced noise elimination, one-button recording from the front panel, recording-status indication and host headphone monitoring.
• Supports docking with voice-transcription equipment to achieve role separation.
