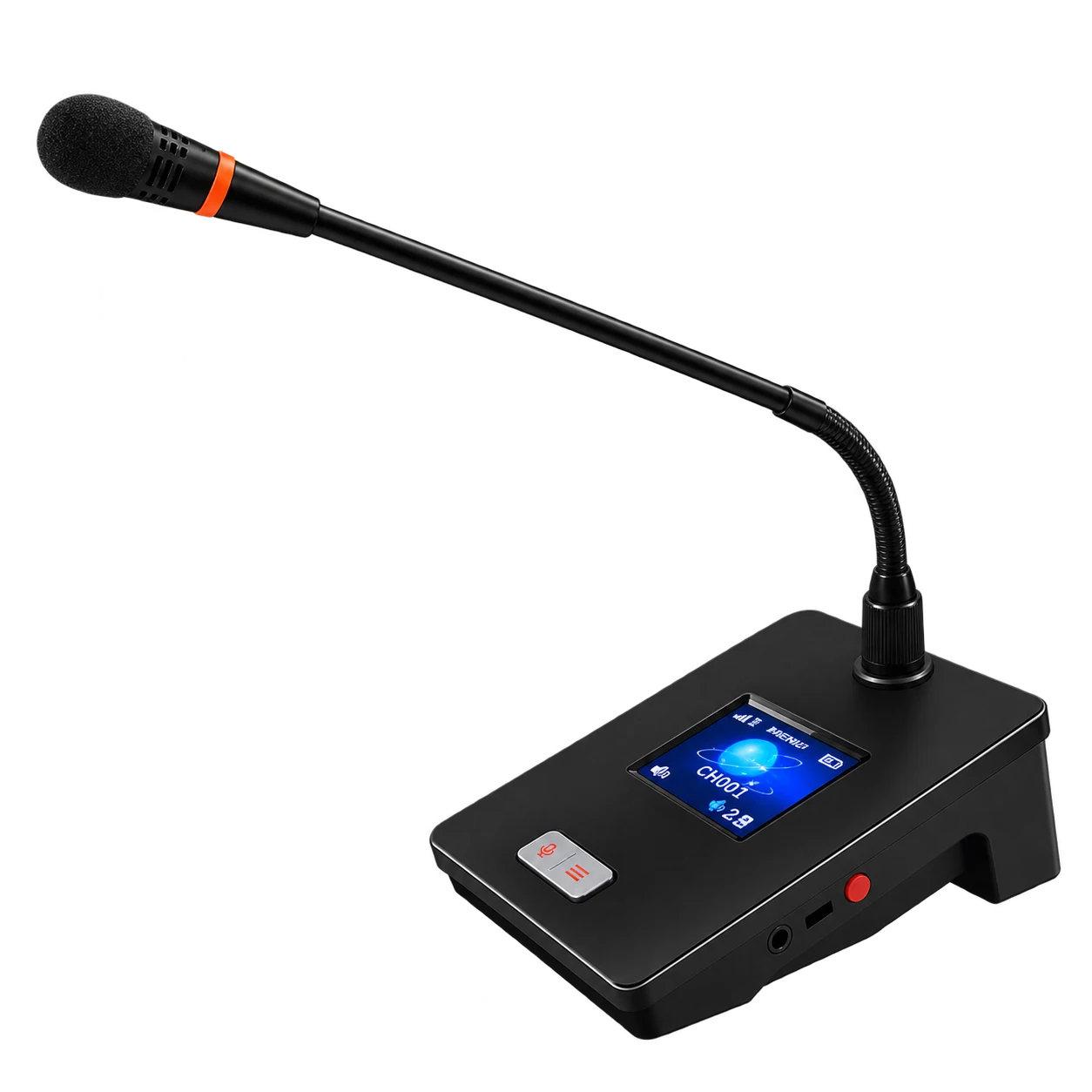

Synoveta SV-WWC-M809C 5G Wi-Fi Wireless Chairman Unit

Synoveta · Wi-Fi Wireless Conference

Synoveta Professional Conference

Chairman Unit

SV-WWC-M809C

5G Wi-Fi Wireless Chairman Unit

5G Wi-Fi wireless chairman discussion unit with a full-color display and rechargeable battery.

Key Features

  • High-definition 2.4-inch full-color display showing microphone status, current time and date, speaking time, speaking timer, signal strength, battery power, ID number and other information.
  • 48 kHz sampling rate; the microphone powers on and connects in about 5 seconds.
  • Intelligent fault detection for access-point failure, host communication failure and low signal strength.
  • Speaking-timer and timed-speaking functions.
  • Voice-control sensitivity and shutdown time can be adjusted through PC software.
  • 5-band EQ adjustment for optimizing the sound effect of all microphones.
  • Supports sign-in; sign-in can be set and initiated through PC software.
  • Uses 128-bit AES encryption and WPA/WPA2 wireless security to prevent eavesdropping and unauthorized access.
  • Built-in rechargeable lithium battery provides approximately 10 hours of working time in speech mode.
  • The chairman-priority function can turn off the microphones of all representatives who are speaking.
  • Includes one 3.5 mm stereo headphone jack.
  • Supports Type-C program upgrades and 18 W fast charging; the microphone can be charged through a power bank.

Product data

Technical specifications

SpecificationValue
Microphone typeCardioid directional electret
Frequency response80 Hz–16 kHz
Microphone input impedance1 kΩ
Sensitivity−40 ± 1.5 dB (0 dB = 1 V/Pa at 1 kHz)
Maximum SPL100 dB (THD >3%)
Signal-to-noise ratio>80 dB(A)
Crosstalk>70 dB
Dynamic range>80 dB
THD<0.1%
Maximum power consumption1.5 W
Power supplyLithium battery
Charging methodCharge through the Type-C interface connected to the charging box
ColorBlack
Sign-in functionButton sign-in
Display2.4 inches
Installation methodDesktop
Wireless frequency range5.15–5.85 GHz
Working time in speech mode10 hours
Microphone rod length400 mm long black microphone rod
