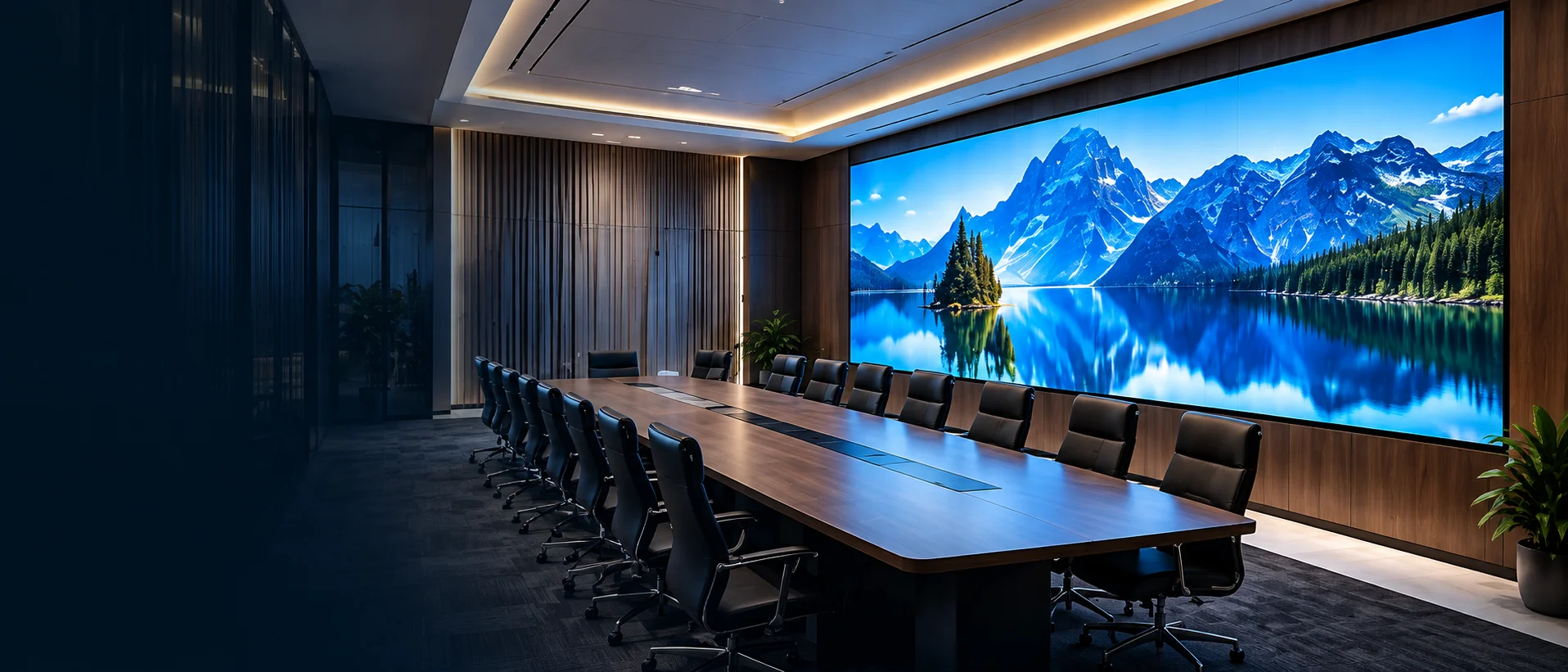

SVC LED display installed in a premium conference room

Synoveta Professional Display Systems

SVC Series

Professional Indoor LED Display

A refined modular display platform created for clear information, immersive presentations and dependable everyday visual communication.

INDOOR LEDP1.25 | P1.5 | P1.86MODULAR PANEL SYSTEMPROJECT-CONFIGURED

Request product information

Built for information-rich environments

Clear visuals. Confident decisions.

The SVC Series brings large-format visual communication into professional indoor spaces. Its modular panel architecture supports display walls planned around the room, the content and the people who need to see every detail.

Professional LED panel system

Designed Around Your Space

From an executive meeting room to an always-on operations centre, SVC can be configured around the required canvas size, viewing distance and content workflow.

Modular, scalable display architecture
Clear presentation of video, text and data
Project-led system design and integration

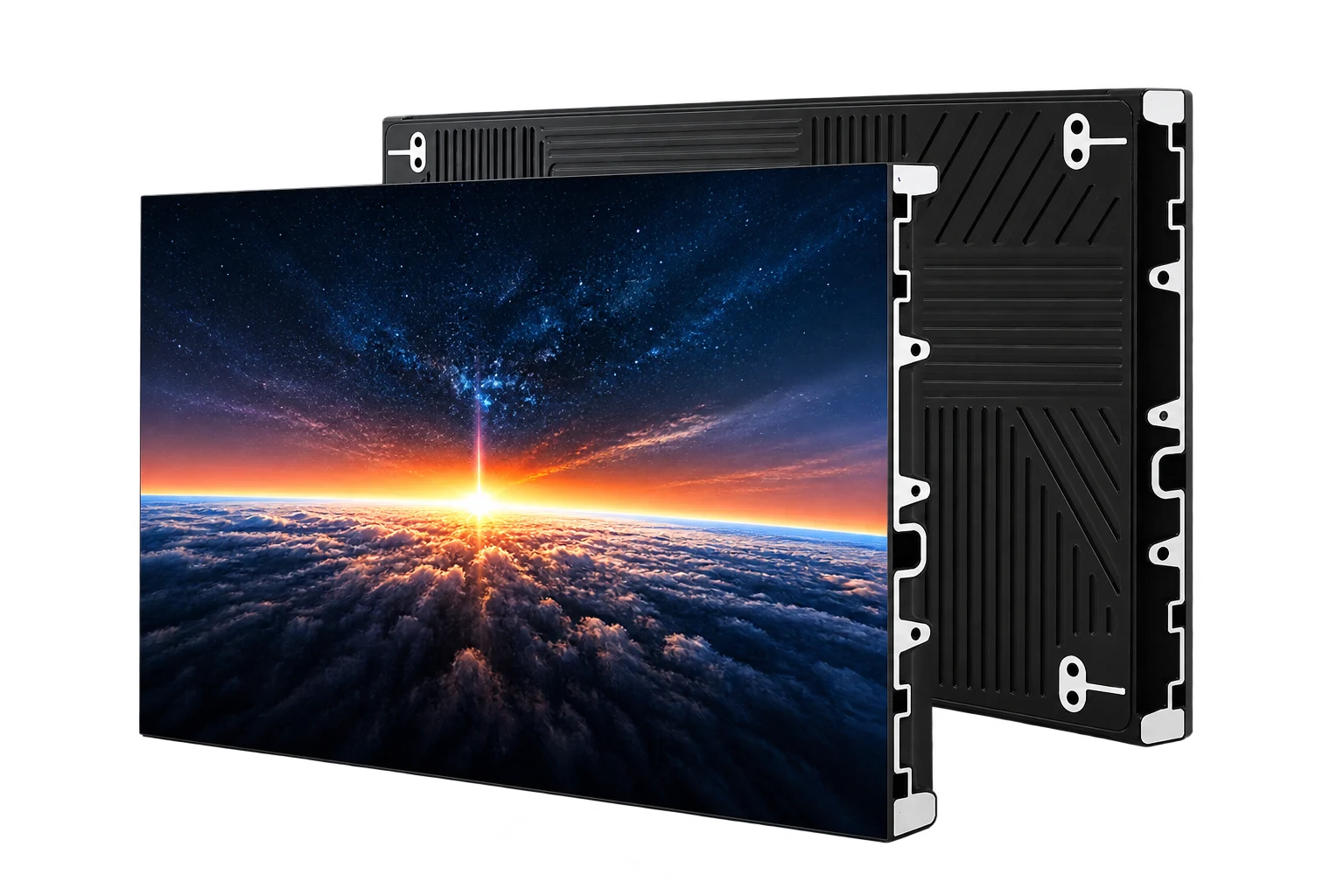

SVC Series LED display panel shown from the front and rear

Visual precision

Present dashboards, live feeds, presentations and detailed content on one focused visual canvas.

Modular scale

Plan the display dimensions around the room, the viewing audience and the required content format.

Professional integration

Coordinate display, processing, control, mounting and signal flow as one complete project solution.

From requirement to configuration

Plan the Right SVC Display

Every professional display project starts with the space and its content. These inputs help define the appropriate SVC configuration.

Planning area	SVC approach	What to define
Installation environment	Indoor professional spaces	Ambient light, room layout and operating hours
Viewing requirement	Close and medium viewing	Smallest text, data density and nearest viewer
Display format	Modular LED panel system	Required screen dimensions and aspect ratio
Content workflow	Presentation, monitoring and live content	Sources, processor and control integration
Project configuration	Designed to suit each installation	Mounting, access, power and signal routing

Final panel, pixel pitch, brightness, cabinet, mounting and electrical specifications are selected according to the approved project requirements.

Full Technical Specifications

Model Technical Data

Synoveta SVC Series fine-pitch COB LED display module

Available models

SVC-P1.25 / P1.5 / P1.86 COB

Fine-Pitch Full Flip-Chip COB LED Display

P1.25
240 × 135 pixels: P1.5
192 × 108 pixels: P1.86
160 × 90 pixels

Display Parameters

ParameterP1.25SVC-P1.25 COBP1.5SVC-P1.5 COBP1.86SVC-P1.86 COB

Brand: Synoveta; Synoveta; Synoveta

Model: SVC-P1.25 COB; SVC-P1.5 COB; SVC-P1.86 COB

Application: Indoor Fine-Pitch LED Display; Indoor Fine-Pitch LED Display; Indoor Fine-Pitch LED Display

Pixel Composition: RGB; RGB; RGB

Packaging Technology: Full Flip-Chip COB; Full Flip-Chip COB; Full Flip-Chip COB

Pixel Pitch: 1.25 mm; 1.56 mm; 1.86 mm

Module Size (W × H): 300 × 168.75 mm; 300 × 168.75 mm; 300 × 168.75 mm

Module Resolution (W × H): 240 × 135 pixels; 192 × 108 pixels; 160 × 90 pixels

Module Weight: Approx. 0.3 kg; Approx. 0.3 kg; Approx. 0.3 kg

Cabinet Size (W × H): 600 × 337.5 mm; 600 × 337.5 mm; 600 × 337.5 mm

Driving & Processing

ParameterP1.25SVC-P1.25 COBP1.5SVC-P1.5 COBP1.86SVC-P1.86 COB

Scan Mode: 1/135 scan; 1/108 scan; 1/90 scan

Interface Type: HUB320F; HUB320F; HUB320F

Circuit Scheme: Common-anode circuit; Common-anode circuit; Common-anode circuit

Refresh Rate: ≥ 7640 Hz; ≥ 7640 Hz; ≥ 7640 Hz

Frame Change Rate: ≥ 60 Hz; ≥ 60 Hz; ≥ 60 Hz

Drive Mode: Constant-current drive; Constant-current drive; Constant-current drive

Grayscale: 14 bits; 14 bits; 14 bits

Optical Performance

ParameterP1.25SVC-P1.25 COBP1.5SVC-P1.5 COBP1.86SVC-P1.86 COB

Corrected Maximum Brightness: 1000 cd/m²; 1000 cd/m²; 1000 cd/m²

Brightness Uniformity (Corrected): ≥ 97%; ≥ 97%; ≥ 97%

Chromaticity Uniformity (Corrected): ±0.001 Cx/Cy; ±0.001 Cx/Cy; ±0.001 Cx/Cy

Color Temperature: 3000 K – 15000 K, adjustable; 3000 K – 15000 K, adjustable; 3000 K – 15000 K, adjustable

Viewing Angle (H/V): 175° / 175°; 175° / 175°; 175° / 175°

Contrast Ratio: ≥ 10,000:1; ≥ 10,000:1; ≥ 10,000:1

Electrical

ParameterP1.25SVC-P1.25 COBP1.5SVC-P1.5 COBP1.86SVC-P1.86 COB

Module Supply Voltage: ≥ DC 4.2 V; ≥ DC 4.2 V; ≥ DC 4.2 V

AC Operating Voltage: 100 – 240 V AC; 100 – 240 V AC; 100 – 240 V AC

Maximum Power Consumption: Approx. 380 W/m²; Approx. 380 W/m²; Approx. 380 W/m²

Average Power Consumption: Approx. 110 W/m²; Approx. 110 W/m²; Approx. 110 W/m²

Environment & Reliability

ParameterP1.25SVC-P1.25 COBP1.5SVC-P1.5 COBP1.86SVC-P1.86 COB

Operating Temperature / Humidity: -10°C to +60°C / 10% RH to 90% RH; -10°C to +60°C / 10% RH to 90% RH; -10°C to +60°C / 10% RH to 90% RH

Storage Temperature / Humidity: -20°C to +60°C / 10% RH to 90% RH; -20°C to +60°C / 10% RH to 90% RH; -20°C to +60°C / 10% RH to 90% RH

Service Life: 120,000 hours; 120,000 hours; 120,000 hours

Certifications

ParameterP1.25SVC-P1.25 COBP1.5SVC-P1.5 COBP1.86SVC-P1.86 COB

Certifications: CE / CB / IEC / RoHS 2.0 / EMC / LVD / WEEE / ISO 9001 / ISO 14001 / ISO 45001 / ISO 50001 / DCI / Low Blue Light / cTUVus; CE / CB / IEC / RoHS 2.0 / EMC / LVD / WEEE / ISO 9001 / ISO 14001 / ISO 45001 / ISO 50001 / DCI / Low Blue Light / cTUVus; CE / CB / IEC / RoHS 2.0 / EMC / LVD / WEEE / ISO 9001 / ISO 14001 / ISO 45001 / ISO 50001 / DCI / Low Blue Light / cTUVus

Made for professional communication

Where SVC Performs

Purposeful large-format visuals for teams that present, monitor, collaborate and teach.

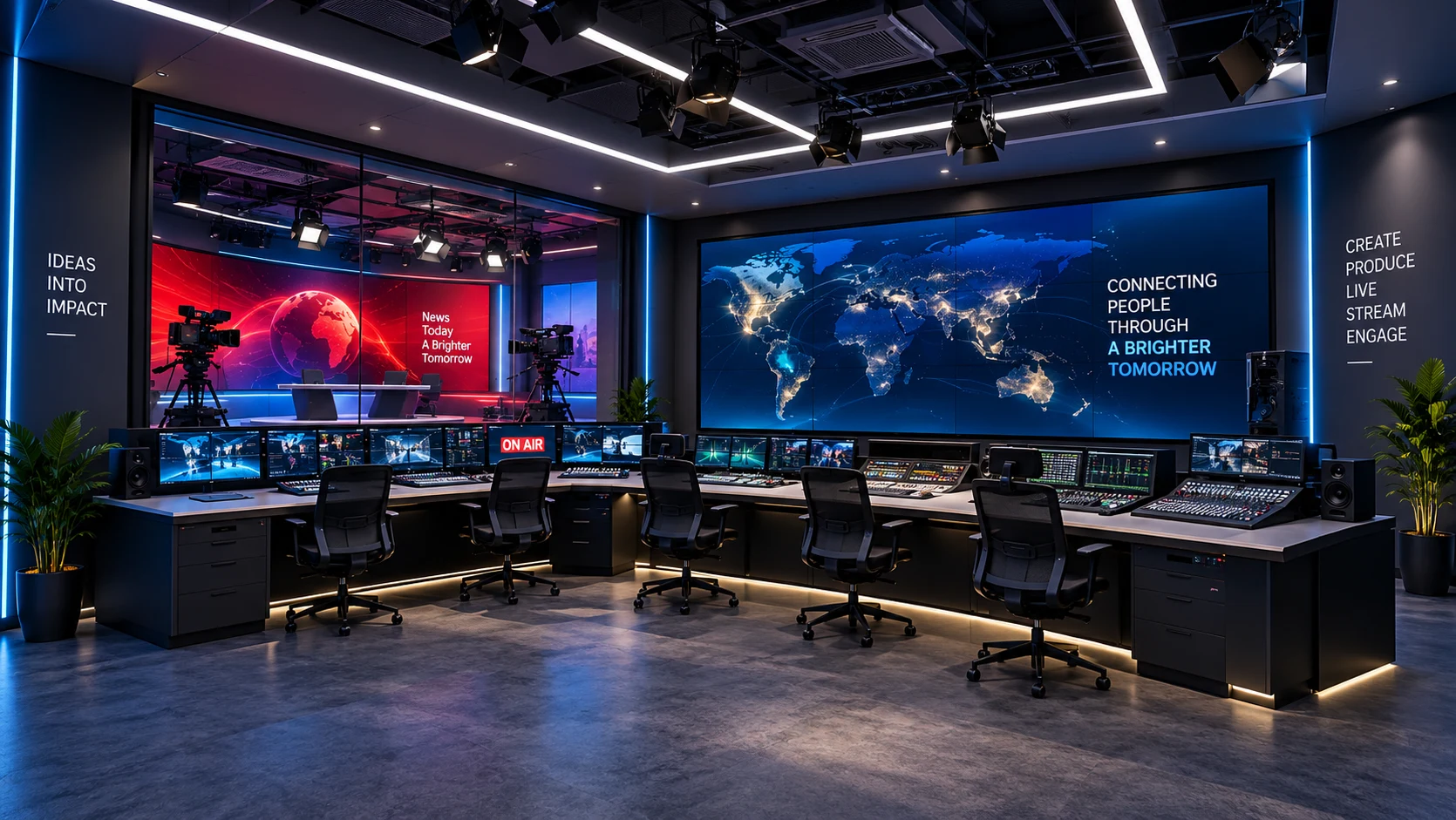

Broadcast & Studio

Large, vivid visual canvases for production monitoring, live content and studio presentation environments.

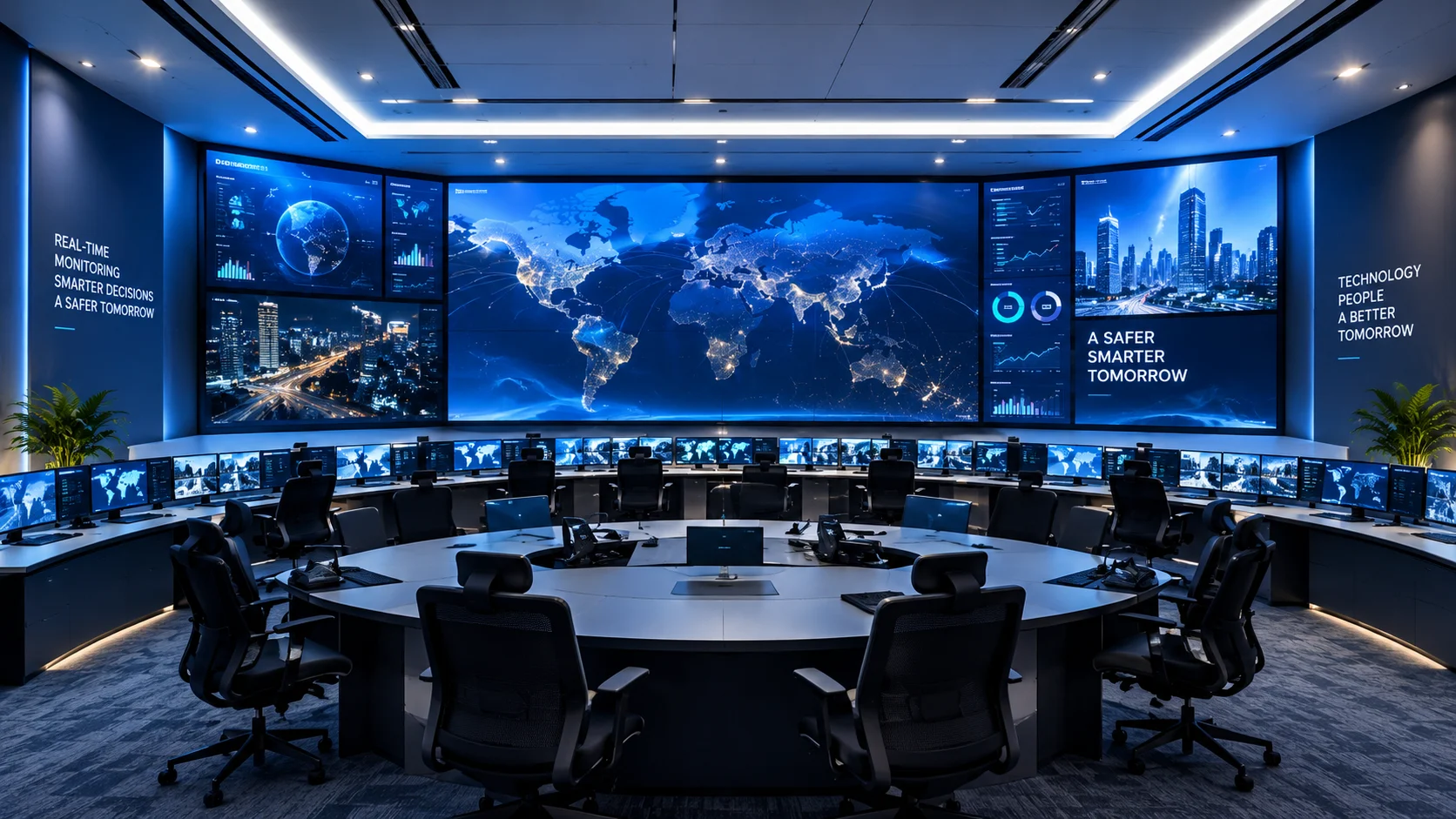

SVC LED display wall in a command and control centre

Command & Control

A clear, unified view of operational data for monitoring, coordination and fast decision-making.

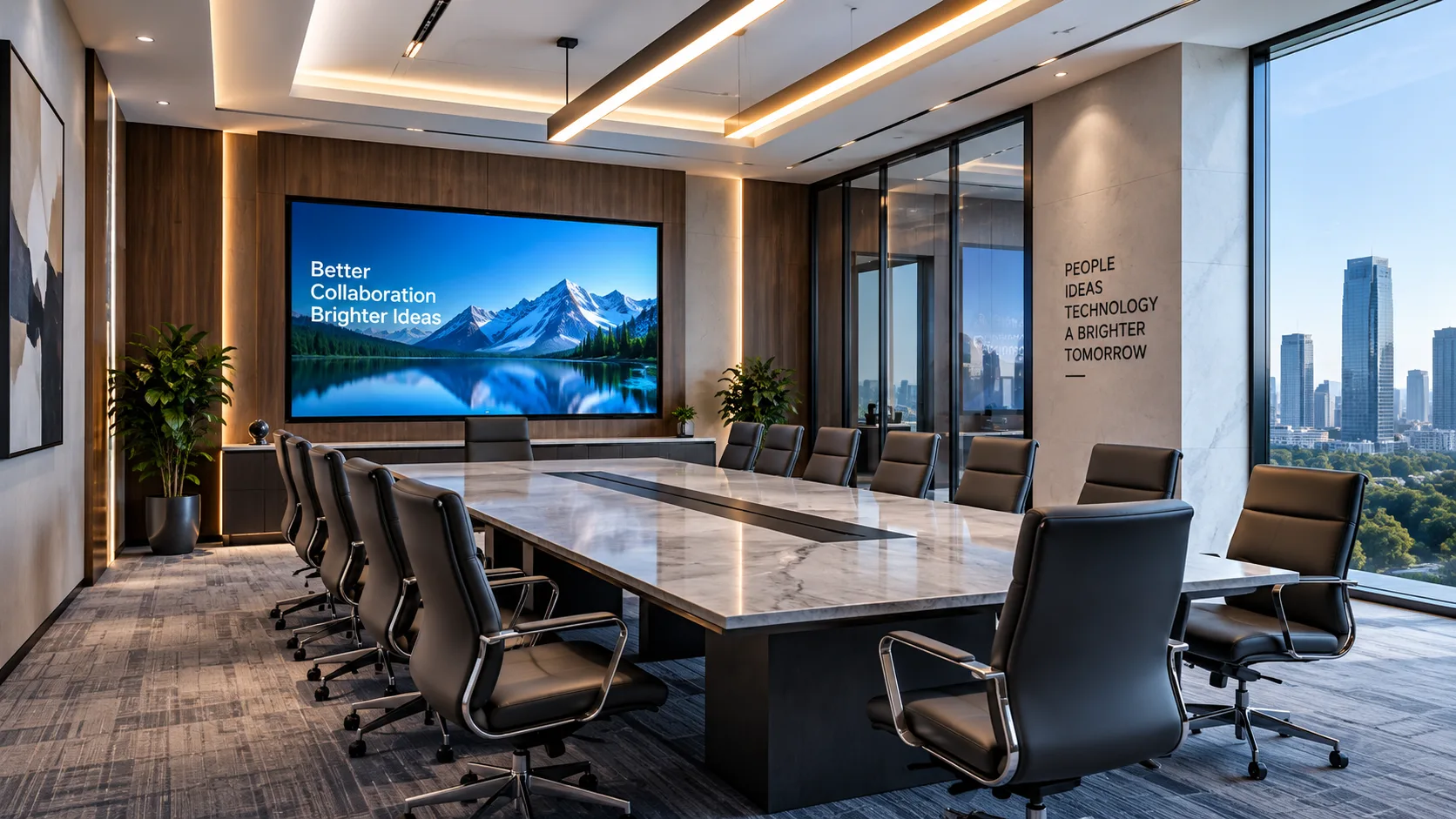

Corporate & Conference

Confident presentations and collaborative content for boardrooms, meeting rooms and executive spaces.

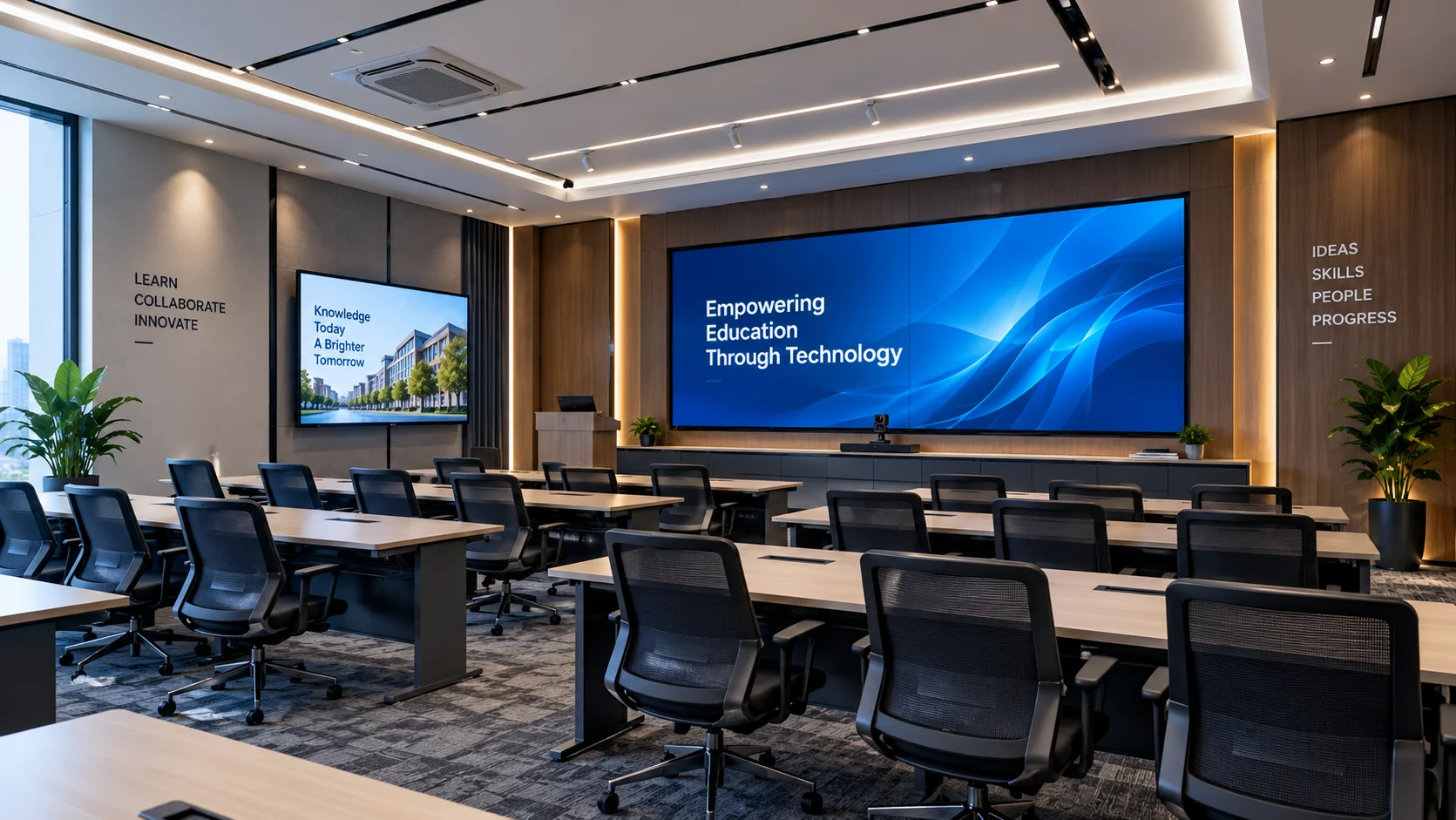

SVC LED display installed in an education and training room

Education & Training

High-impact learning content for training centres, lecture spaces and technology-enabled classrooms.

Talk to our display team

Send Inquiry Now

Tell us about your display size, viewing distance and installation requirements.
