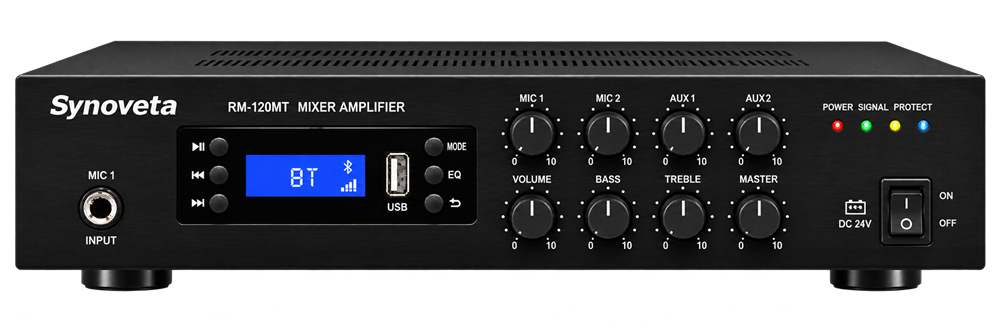

SV-RM Series
Mini Audio Source Mixer Amplifier
Compact mixer amplifier series integrating MP3 playback, FM tuner, Bluetooth audio and 24 V DC backup operation for commercial PA and background music systems.
Key Features
- Class-D amplifier design with low heat generation and strong power efficiency.
- Built-in Bluetooth 5.0, USB/SD media playback and FM radio.
- Four signal inputs: two line and two microphone inputs.
- Independent channel volume plus treble and bass adjustment.
- 100 V / 70 V constant-voltage and 4–16 Ω speaker outputs.
- AC 110–260 V input plus 24 V DC emergency backup power with automatic switching.
- Short-circuit, DC and high-temperature protection with fanless physical cooling.
- Available in 40 W, 60 W, 90 W and 120 W output variants.
Technical Data
Technical Specifications
Compare models, output options and installation requirements at a glance.4Available
Models
Models
| SpecificationParameter | ModelSV-RM-40MT | ModelSV-RM-60MT | ModelSV-RM-90MT | ModelSV-RM-120MT |
|---|---|---|---|---|
| Rated Output Power | 40 W | 60 W | 90 W | 120 W |
| Output Mode | 4–16 Ω / 70 V / 100 V | 4–16 Ω / 70 V / 100 V | 4–16 Ω / 70 V / 100 V | 4–16 Ω / 70 V / 100 V |
| Microphone Input | Mic1/Mic2: 600 Ω, 5–10 mV, unbalanced | Mic1/Mic2: 600 Ω, 5–10 mV, unbalanced | Mic1/Mic2: 600 Ω, 5–10 mV, unbalanced | Mic1/Mic2: 600 Ω, 5–10 mV, unbalanced |
| Line Input | 10 kΩ, 150–470 mV, unbalanced | 10 kΩ, 150–470 mV, unbalanced | 10 kΩ, 150–470 mV, unbalanced | 10 kΩ, 150–470 mV, unbalanced |
| Auxiliary Output | 0.775 V (0 dB) | 0.775 V (0 dB) | 0.775 V (0 dB) | 0.775 V (0 dB) |
| Frequency Response | 90 Hz–18 kHz (±3 dB) | 90 Hz–18 kHz (±3 dB) | 90 Hz–18 kHz (±3 dB) | 90 Hz–18 kHz (±3 dB) |
| THD | <0.3% @ 1 kHz, 1/3 rated power | <0.3% @ 1 kHz, 1/3 rated power | <0.3% @ 1 kHz, 1/3 rated power | <0.3% @ 1 kHz, 1/3 rated power |
| S/N Ratio | Line: 85 dB; Mic1: 72 dB | Line: 85 dB; Mic1: 72 dB | Line: 85 dB; Mic1: 72 dB | Line: 85 dB; Mic1: 72 dB |
| Tone Control | Bass 100 Hz ±10 dB; Treble 10 kHz ±10 dB | Bass 100 Hz ±10 dB; Treble 10 kHz ±10 dB | Bass 100 Hz ±10 dB; Treble 10 kHz ±10 dB | Bass 100 Hz ±10 dB; Treble 10 kHz ±10 dB |
| Power Supply | AC 110–260 V, 50/60 Hz | AC 110–260 V, 50/60 Hz | AC 110–260 V, 50/60 Hz | AC 110–260 V, 50/60 Hz |
| Power Consumption | 80 W | 100 W | 140 W | 190 W |
| Dimensions | 72(H) × 305(W) × 230(D) mm | 72(H) × 305(W) × 230(D) mm | 72(H) × 305(W) × 230(D) mm | 72(H) × 305(W) × 230(D) mm |
| Net Weight | 3.9 kg | 4.1 kg | 4.6 kg | 4.9 kg |
Continue Exploring
Related Audio Series

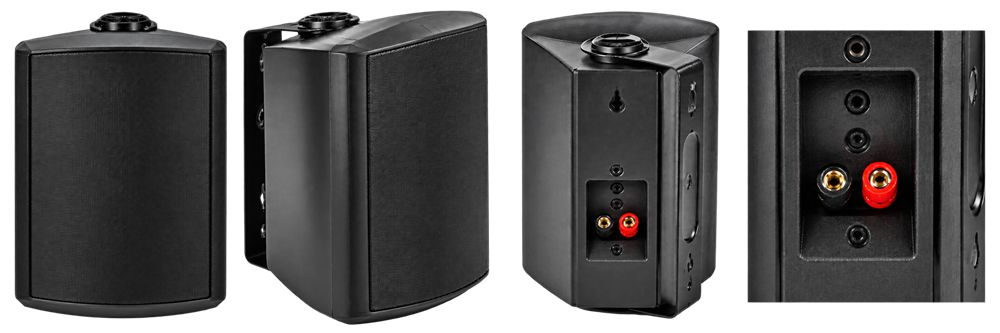

Wall-Mount Speaker
SV Series
Compact wall-mount speakers designed for clear public address and balanced background music.
View Details

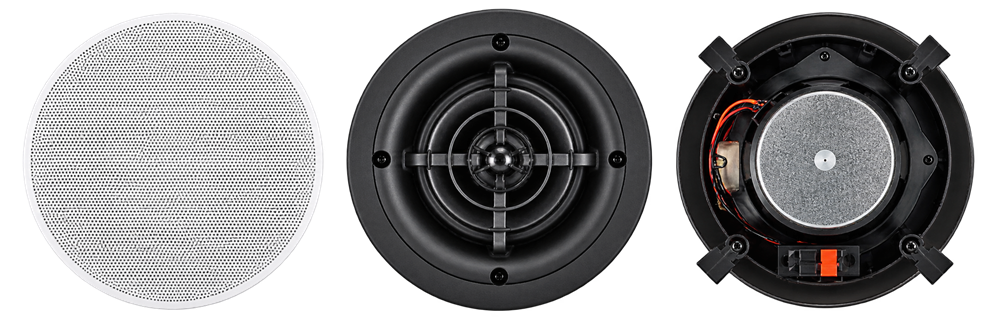

Ceiling Speaker
