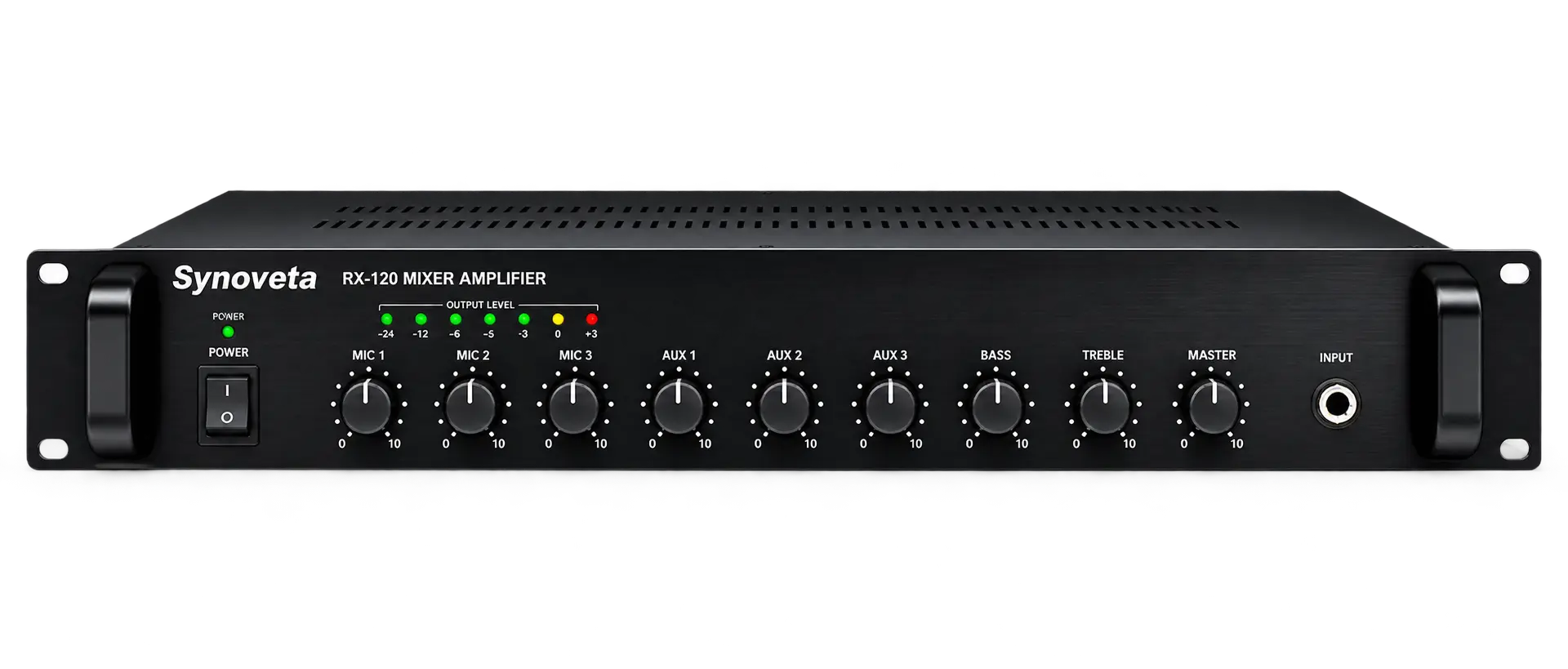

Synoveta RX Series rack-mount mixer amplifier

Synoveta Professional Audio

SV-RX Series

Basic Mixer Amplifier

Rack-mount commercial mixer amplifier series for public-address systems, offering multiple microphone and line inputs, 70/100 V distribution outputs and protected high-power operation.

Key Features

High-grade 2U aluminum panel and double-sided SMT PCB.
Five signal inputs: three microphone and two line inputs.
100 V / 70 V constant-voltage and 4–16 Ω outputs.
Independent input volume, master volume and tone controls.
MIC1 automatic mute attenuation adjustable from 0 to −30 dB.
Five-segment LED level display.
Short-circuit and over-temperature protection with temperature-controlled fan cooling.
Output options from 60 W to 650 W for scalable installations.

Multiple Inputs70 / 100 VHigh Power

Discuss This Series View Specifications

Technical Data

Technical Specifications

Compare models, output options and installation requirements at a glance.

6Available
Models

SpecificationParameter	ModelSV-RX-60	ModelSV-RX-120	ModelSV-RX-240	ModelSV-RX-360	ModelSV-RX-500	ModelSV-RX-650
Rated Power	60 W	120 W	240 W	360 W	500 W	650 W
Output Mode	4–16 Ω / 70 V / 100 V	4–16 Ω / 70 V / 100 V	4–16 Ω / 70 V / 100 V	4–16 Ω / 70 V / 100 V	4–16 Ω / 70 V / 100 V	4–16 Ω / 70 V / 100 V
Mic Input	Mic1/2/3: 600 Ω, 10–15 mV, unbalanced	Mic1/2/3: 600 Ω, 10–15 mV, unbalanced	Mic1/2/3: 600 Ω, 10–15 mV, unbalanced	Mic1/2/3: 600 Ω, 10–15 mV, unbalanced	Mic1/2/3: 600 Ω, 10–15 mV, unbalanced	Mic1/2/3: 600 Ω, 10–15 mV, unbalanced
Line Input	AUX1/AUX2: 10 kΩ, 200–470 mV, unbalanced	AUX1/AUX2: 10 kΩ, 200–470 mV, unbalanced	AUX1/AUX2: 10 kΩ, 200–470 mV, unbalanced	AUX1/AUX2: 10 kΩ, 200–470 mV, unbalanced	AUX1/AUX2: 10 kΩ, 200–470 mV, unbalanced	AUX1/AUX2: 10 kΩ, 200–470 mV, unbalanced
Frequency Response	80 Hz–15 kHz (±3 dB)	80 Hz–15 kHz (±3 dB)	80 Hz–15 kHz (±3 dB)	80 Hz–15 kHz (±3 dB)	80 Hz–15 kHz (±3 dB)	80 Hz–15 kHz (±3 dB)
THD	<0.5% @ 1 kHz, 1/3 rated power	<0.5% @ 1 kHz, 1/3 rated power	<0.5% @ 1 kHz, 1/3 rated power	<0.5% @ 1 kHz, 1/3 rated power	<0.5% @ 1 kHz, 1/3 rated power	<0.5% @ 1 kHz, 1/3 rated power
S/N Ratio	Line: ≥85 dB; Mic: ≥72 dB	Line: ≥85 dB; Mic: ≥72 dB	Line: ≥85 dB; Mic: ≥72 dB	Line: ≥85 dB; Mic: ≥72 dB	Line: ≥85 dB; Mic: ≥72 dB	Line: ≥85 dB; Mic: ≥72 dB
Power Supply	AC 220 V ±10%, 50–60 Hz	AC 220 V ±10%, 50–60 Hz	AC 220 V ±10%, 50–60 Hz	AC 220 V ±10%, 50–60 Hz	AC 220 V ±10%, 50–60 Hz	AC 220 V ±10%, 50–60 Hz
Power Consumption	95 W	175 W	350 W	485 W	675 W	878 W
Dimensions	89(H) × 483(W) × 366(D) mm	89(H) × 483(W) × 366(D) mm	89(H) × 483(W) × 366(D) mm	89(H) × 483(W) × 366(D) mm	89(H) × 483(W) × 366(D) mm	89(H) × 483(W) × 366(D) mm
Net Weight	10.04 kg	11.35 kg	13.68 kg	14.08 kg	15.58 kg	17.58 kg
