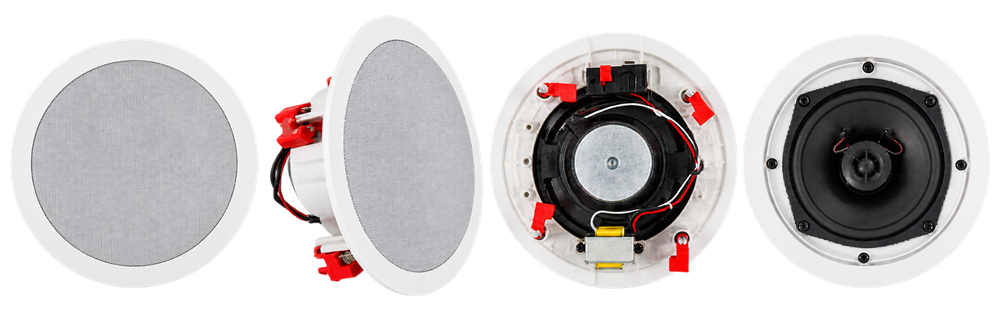

S Series
Ceiling Speaker
Commercial ceiling speaker series for 100 V distributed audio and multi-tap 70 V / 100 V / 8 Ω applications, with multiple driver sizes for scalable coverage.
Key Features
- Clean low-profile design for professional ceiling installations.
- ABS enclosure with a durable metal grille.
- Available in 5-inch, 6.5-inch and 8-inch configurations.
- Fixed 100 V models for distributed commercial audio.
- Multi-tap versions support 70 V, 100 V and 8 Ω systems.
- Steel back-cover variants provide added installation protection.
Technical Data
Technical Specifications
Compare models, output options and installation requirements at a glance.6Available
Models
Models
Fixed 100 V Models
| SpecificationParameter | ModelSVR-S05V | ModelSVR-S06V | ModelSVR-S08V |
|---|---|---|---|
| Rated Power (100 V) | 10 W | 20 W | 30 W |
| Max Power | 20 W | 40 W | 60 W |
| Input | 100 V | 100 V | 100 V |
| Sensitivity | 84 ±3 dB | 87 ±3 dB | 90 ±3 dB |
| Frequency Response | 100 Hz–15 kHz | 100 Hz–15 kHz | 100 Hz–15 kHz |
| Speaker Unit | 5 in + 0.75 in | 6.5 in + 0.75 in | 8 in + 0.75 in |
| Cutout | Ø168 mm | Ø195 mm | Ø248 mm |
| Dimensions | Ø203 × 85 mm | Ø230 × 85 mm | Ø280 × 100 mm |
| Net Weight | 1 kg | 1.3 kg | 2 kg |
| Material | ABS body + metal grille | ABS body + metal grille | ABS body + metal grille |
Multi-Tap 70 V / 100 V / 8 Ω Models
| SpecificationParameter | ModelSVR-S05TH | ModelSVR-S06TH | ModelSVR-S08TH |
|---|---|---|---|
| Rated Power (100 V) | 2.5 / 5 / 10 / 20 W | 3.75 / 7.5 / 15 / 30 W | 5 / 10 / 20 / 40 W |
| Rated Power (70 V) | 1.25 / 2.5 / 5 / 10 / 20 W | 1.83 / 3.75 / 7.5 / 15 / 30 W | 2.5 / 5 / 10 / 20 / 40 W |
| Max Power | 40 W | 60 W | 80 W |
| Input | 70 V / 100 V / 8 Ω | 70 V / 100 V / 8 Ω | 70 V / 100 V / 8 Ω |
| Sensitivity | 84 ±3 dB | 87 ±3 dB | 90 ±3 dB |
| Frequency Response | 100 Hz–15 kHz | 100 Hz–15 kHz | 100 Hz–15 kHz |
| Speaker Unit | 5 in + 0.75 in | 6.5 in + 0.75 in | 8 in + 0.75 in |
| Cutout | Ø168 mm | Ø195 mm | Ø248 mm |
| Dimensions | Ø203 × 145 mm | Ø230 × 150 mm | Ø280 × 190 mm |
| Net Weight | 1.4 kg | 1.8 kg | 2.3 kg |
| Material | ABS body + metal grille + steel back cover | ABS body + metal grille + steel back cover | ABS body + metal grille + steel back cover |
